Coleman Basement Air Conditioner Model 6636C Capacitor Kit

Coleman Basement Air Conditioner Model 6636C Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item# 45 Compressor Run Capacitor (link): 1499-5671

Item#'s 48 & 49 Hard Start Capacitor Kit (link): 8333A9021

Item# 51 Indoor Blower Fan Capacitor (link): 1499-5461

Option #1: Item# 34 Outdoor Blower Fan Capacitor (link): 1499-5631

Option #2: Item# 44 Compressor Relay (link): 1460-1131

__________________________________________________________

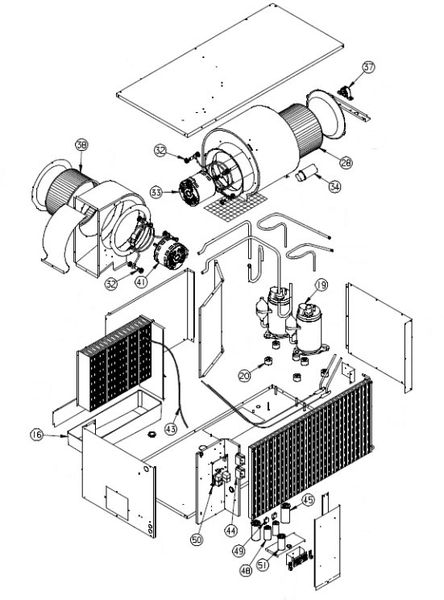

Coleman Basement Air Conditioner Model 6636C Exploded Parts View Links

Click The Down Button To View Complete Parts List

Item# 16 Drain Pan 6636A104

Item# 19 Overload 1450-0071

Item# 20 Compressor Mount Package (link): 6759-3081

Item# 28 Outdoor Blower Wheel (link): 1472-1161

Item# 32 Sleeve/ Grommet Package (link): 6795A3031

Item# 33 Outdoor Blower Motor (link): 1468A3029

Item# 34 Outdoor Blower Capacitor (link): 1499-5631

Item# 37 Pillow Block Bearing (link): 6536-3011

Item# 38 Indoor Blower Wheel (link): 1472-1151

Item# 41 Indoor Blower Motor (link): 1468A3219

Item# 51 Indoor Fan Capacitor (link): 1499-5461

Item# 43 Freeze Switch (link): 7330A3231

Item# 44 Compressor Relay (link): 1460-1131

Item# 45 Run Capacitor (link): 1499-5671

Item#'s 48 & 49 Hard Start Capacitor Kit (link): 8333A9021

Item# 50 Printed Circuit Board Kit (link): 6636A3209

Not Shown High Voltage Terminal Board (link): 6795-3151
