Coleman Basement Heat Pump Model 6536D891 Capacitor Kit
Coleman Basement Heat Pump Model 6536D891 Capacitor Kit
IN-STOCK

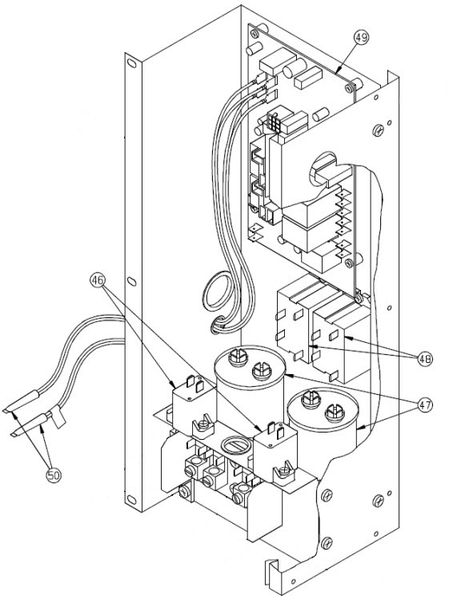

Kit Contents (links in blue if available):
Item# 47 Run Capacitor 1499-5661
Item# 46 Hard Start Capacitor Kit 1497-9041 NLA → Use P# 8333A9021
Item# 42 Fan Capacitor 1499-5461
Option #1: Item# 35 Outdoor Blower Capacitor 1499-5631
Option #2: Item# 48 Compressor Relay 1460-1131
__________________________________________________________

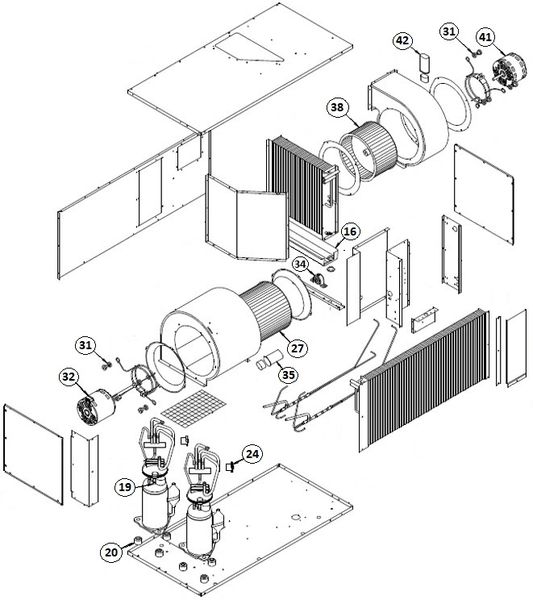

Coleman Basement Heat Pump Model 6536D891 Exploded Parts View Links
Click The Down Button To View Complete List
Item# 19 Overload 6759-3791 NLA
Item# 20 Compressor Mount Package 6759-3081
Item# 24 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)
Item# 27 Outdoor Blower Wheel 1472-1161
Item# 31 Sleeve/ Grommet Package 6795A3031
Item# 32 Outdoor Blower Motor 1468A3029
Item# 35 Outdoor Blower Capacitor 1499-5631
Item# 34 Pillow Block Bearing 6536-3011
Item# 38 Indoor Blower Wheel 1472-1001
Item# 41 Indoor Blower Motor 1468A3129
Item# 42 Fan Capacitor 1499-5461
Item# 50 Freeze Switch 7330A3231
Item# 48 Compressor Relay 1460-1131
Item# 47 Run Capacitor 1499-5661
Item# 46 Hard Start Capacitor Kit 1497-9041 NLA → Use P# Link 8333A9021
Item# 49 Printed Circuit Board Kit 6536C3209
Not Shown High Voltage Terminal Board 6795-3151
