Coleman Heat Pump Model 47024-879 Capacitor Kit

Coleman Heat Pump Model 47024879 Capacitor Kit

IN-STOCK

Kit Contents (links in blue):

Item#23 Run Capacitor 1499-5721

Item#24 Start Device Package 9333-9021 (New P# 8333A9021)

Optional Item: Item#26 High Pressure Relay 1460-1271

___________________________________________________

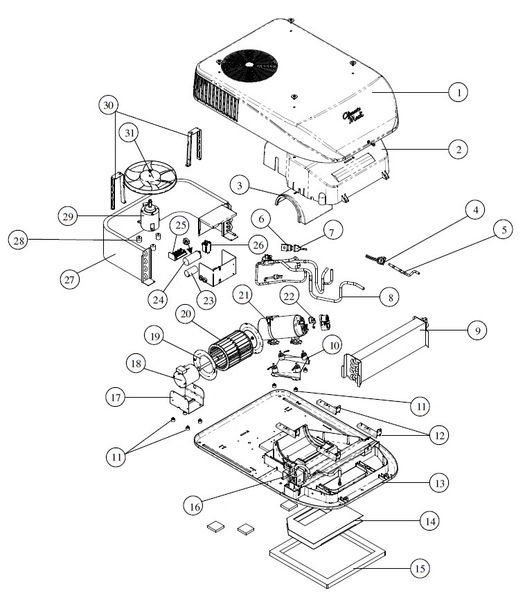

Model 47024-879 Exploded Parts View Item List

Not Shown: Coleman Soft Start Compressor Upgrade Kit 1497-3601

Item#4 OD Coil Switch 1460-2141

Item#11 Motor & Compressor Isolator Package 47233-3171

Item#15 Gasket Package 8332-3301

Item#16 Condensate Pump Assembly 47233-3091

Item#18 Indoor Motor 1468A3389 NLA → Use P# 1468B3389

Item#20 Blower Wheel 1472A1191

Click The Down Arrow To View Complete List

Item#22 Overload 1450-0521

Item#23 Run Capacitor 1499-5721

Item#24 Start Device Package 9333-9021 → Use P# 8333A9021

Item#31 Fan Blade 1472-5041 NLA → Use P# 1472D5041

Item#26 High Pressure Relay 1460-1271

NS Screw & Washer Package 6792-5111

Item#29 Outdoor Motor 1468A3399
