Coleman Heat Pump Model 48058876 Capacitor Kit
IN-STOCK
Kit Contents (links in blue if available):
Item#12 Run Capacitor 1499-5681
Item#13 Fan Capacitor 1499-5461
Item#14 Hard Start Device 8333A9021
_____________________________________________________

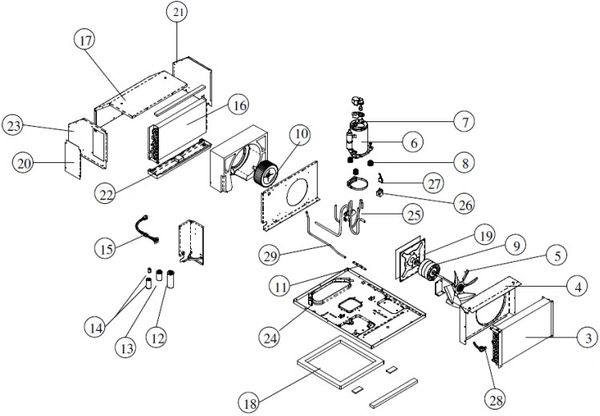

Coleman Heat Pump Model 48058-876 Parts List
*Not Shown* Coleman Soft Start Upgrade Kit 1497-3601

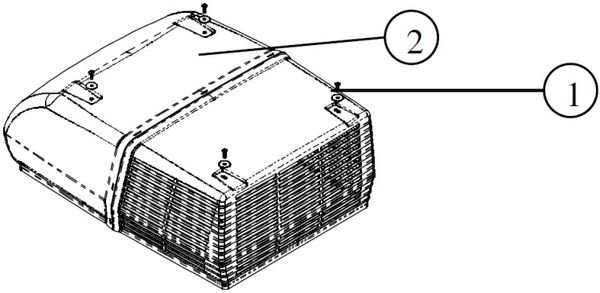

Item#1 Screw & Washer Kit 6792-5111
*Not Shown* Freeze Switch 1460-2101
*Not Shown* Pressure Switch 1460-1541
Item#4 Fan Shroud 6792-1071
Item#5 Fan Blade 6733-3221
Item#7 Overload 1450-0221 NLA
Click The Down Arrow To View The Complete Parts List
Item#8 Compressor Mount Kit 6759-3081
Item#9 Blower Motor 1468-3109 NLA → Use 1468A3109 NLA → (Use P# Link 1468-3489)
Item#10 Blower Wheel 1472-1091
Item#12 Run Capacitor 1499-5681
Item#13 Fan Capacitor 1499-5461
Item#14 Hard Start Device 8333A9021
Item#18 Gasket 8332-3301
Item#19 Motor Mount & Seal Assembly 8333-5151
Item#26 Solenoid Coil 1460-1181 NLA → (Use P# Link 1460-1331)
