Coleman Heat Pump Model 8534A876 Capacitor Kit

Coleman Heat Pump Model 8534A876 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item#11 Run Capacitor 1499-5671
Item#12 Fan Capacitor 1499-5461
Item#13 & 14 Start & Device Capacitor Kit 8333A9021

______________________________________________________

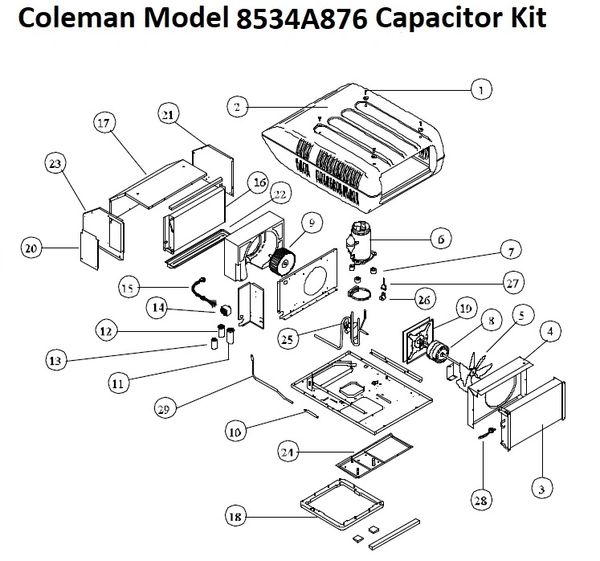

Coleman Heat Pump Model 8534A876 Parts List

Item#1 Screw, Nut & Washer Kit 6792-5111

Item#4 Fan Shroud 6792-1071

Item#5 Fan Blade 6733-3221

Item#7 Compressor Mounting Kit 6759-3081

Item#8 Blower Motor 1468-3109 NLA → 1468A3109 NLA → Use P# Link 1468-3489

Item#9 Impeller 1472-1091

Item#11 Run Capacitor 1499-5671

Click The Down Arrow To View The Complete Parts List

Item#12 Fan Capacitor 1499-5461

Item#13 & 14 Start & Device Capacitor Kit 8333A9021

Item#18 Gasket Package 8332-3301

Item#19 Motor Mount & Shaft Seal Kit 8333-5151

Item#26 Solenoid Coil 1460-1081

Item#28 Freeze Switch 1460-2041 (Obsolete / NLA)

*Not Shown* Shroud Bracket 8333B1551 (Replaces P# 8333A1551)
