• Coleman Heat Pump Model 8534B8764 Capacitor Kit

    $140.47 $99.99

    Coleman Heat Pump Model 8534B8764 Capacitor Kit

    IN-STOCK

    Kit Contents (links in blue if available):

    Item#11 Run Capacitor (link): 1499-5671
    Item#12 Fan Capacitor (link): 1499-5461
    Item#13 & 14 Start & Device Capacitor Kit (link): 8333A9021

    _____________________________________________________

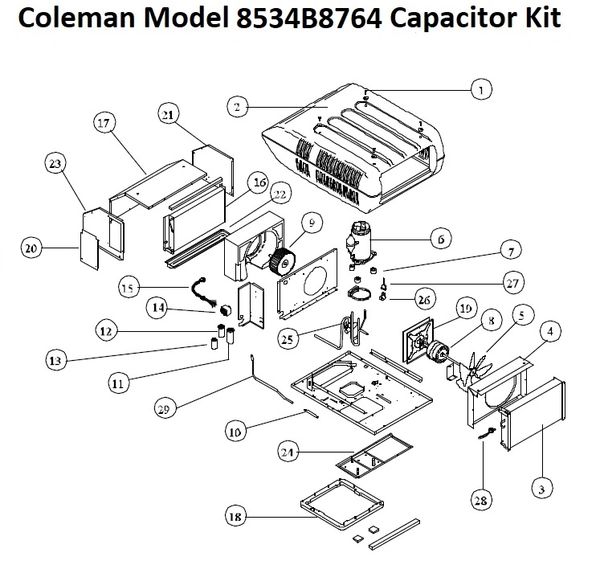

    Coleman Heat Pump Model 8534B8764 Parts List

    Item#1 Screw, Nut & Washer Kit (link): 6792-5111

    Item#4 Fan Shroud (link): 6792-1071

    Item#5 Fan Blade (link): 6733-3221

    Item#7 Compressor Mounting Kit (link): 6759-3081

    Item#8 Motor (115V / 60HZ) (link): 1468-3109

    Item#9 Impeller (link): 1472-1091

    Item#11 Run Capacitor (link): 1499-5671

    Item#12 Fan Capacitor (link): 1499-5461

    Item#13 & 14 Start & Device Capacitor Kit (link): 8333A9021

    Item#18 Gasket Package (link): 8332-3301

    Item#19 Motor Mount & Shaft Seal Kit (link): 8333-5151

    Item#26 Solenoid Coil (link): 1460-1081

    Item#28 Freeze Switch 1460-2041 (Obsolete / NLA)

    *Not Shown* Shroud Bracket (link): 8333B1551 (Replaces P# 8333A1551)
