Coleman Heat Pump Model 8534B8766 Capacitor Kit
IN-STOCK

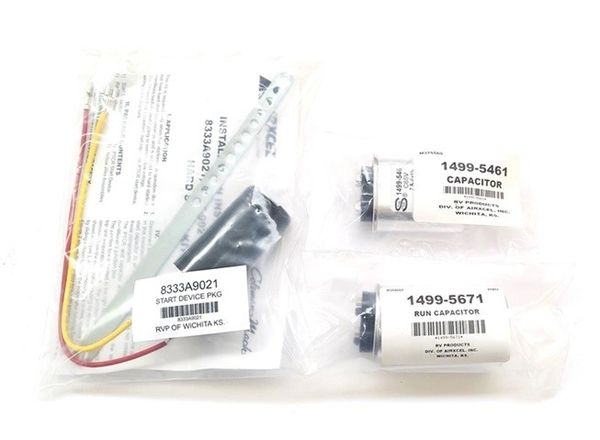

Kit Contents (links in blue if available):
Item#11 Run Capacitor (link): 1499-5671
Item#12 Fan Capacitor (link): 1499-5461
Item#13 & 14 Start & Device Capacitor Kit (link): 8333A9021
_____________________________________________________

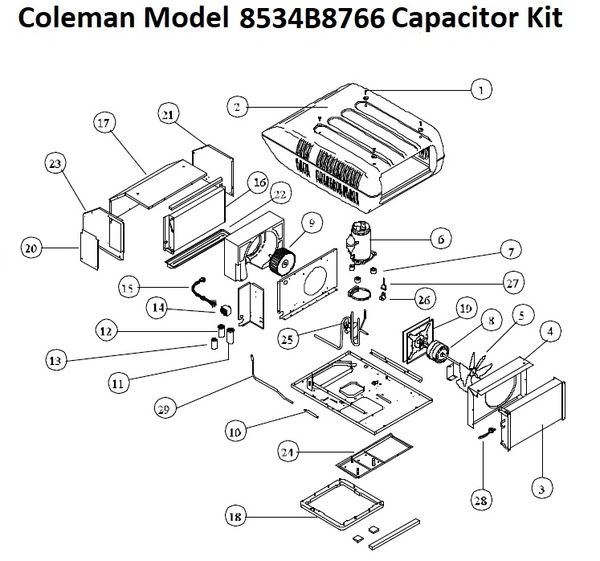

Coleman Heat Pump Model 8534B8766 Parts List
Item#1 Screw, Nut & Washer Kit (link): 6792-5111
Item#4 Fan Shroud (link): 6792-1071
Item#5 Fan Blade (link): 6733-3221
Item#7 Compressor Mounting Kit (link): 6759-3081
Item#8 Motor (115V / 60HZ) (link): 1468-3109
Item#9 Impeller (link): 1472-1091
Item#11 Run Capacitor (link): 1499-5671
Click The Down Arrow To View Complete List
Item#12 Fan Capacitor (link): 1499-5461
Item#13 & 14 Start & Device Capacitor Kit (link): 8333A9021
Item#18 Gasket Package (link): 8332-3301
Item#19 Motor Mount & Shaft Seal Kit (link): 8333-5151
Item#26 Solenoid Coil (link): 1460-1081
Item#28 Freeze Switch 1460-2041 (Obsolete / NLA)
*Not Shown* Shroud Bracket (link): 8333B1551 (Replaces P# 8333A1551)
