Coleman Heat Pump Model 9033D876 Capacitor Kit

Coleman Heat Pump Model 9033D876 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item#6 Start Device Cap. Kit (link): 9333-9021 (New P# Link: 8333A9021)

Item#7 Fan Capacitor (link): 1499-5461

Item#8 Run Capacitor (link): 1499-5721

__________________________________________

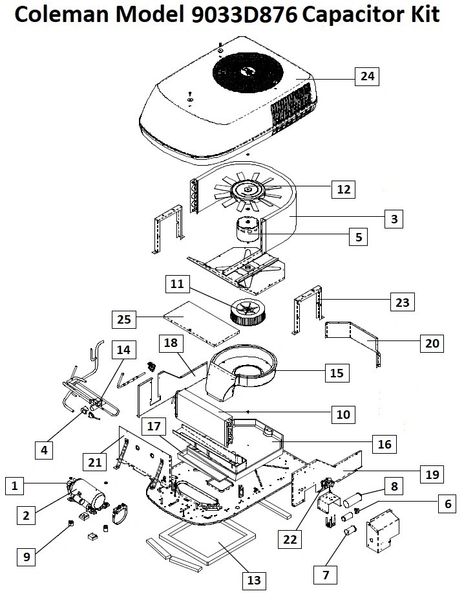

Coleman Heat Pump Model 9033D876 Parts List

Item#1 Overload 1450-0131 NLA

Item#4 Solenoid Coil (link): 1460-1081

Item#5 Motor (link): 1468B3239

Item#6 Start Device Capacitor Kit (link): 9333-9021 (New P# Link: 8333A9021)

Item#7 Fan Capacitor (link): 1499-5461

Item#8 Run Capacitor (link): 1499-5721

Click The Down Arrow To View Complete Parts List

Item#11 Blower Wheel (link): 1472A1181

Item#12 Fan Blade (link): 1472-5021

Item#13 Gasket Package (link): 8332-3301

Item#22 Condensate Pump Assembly 9233-5091 NLA →(Use P# Link: 49233-5091)

*Not Shown Freeze Switch Assembly (link): 9032A5061

*Not Shown Screw, Nut & Washer Kit (link): 6792-5111
