Coleman Zone Control Kit 8530D5081

Coleman Control Box 83305081 No Longer Available

For 8000 / 9000 Series Heat Pumps

Replaces Part Numbers:

• 8530A751

• 8530B751
• 8530C751
• 8530A508
• 8530D508

Used with thermostats / sensor(s) / noise filter links:

• White Thermostat 8330B3351 (Obsolete use 8330D3351)
• White Thermostat 8330C3351 (Obsolete use 8330D3351)
• White Thermostat 8330D3351 (Current Version)
• Black Thermostat 8330B3311 (Obsolete use 8330D3351)

• Black Thermostat 8330C3311 (Obsolete use 8330D3351)
• Black Thermostat 8330D3311 (Current Version)
• Room Sensor 8330-5191
• Freeze Sensor 7330A3231
• Electronic Noise Filter 8330-3301 (Obsolete / NLA)

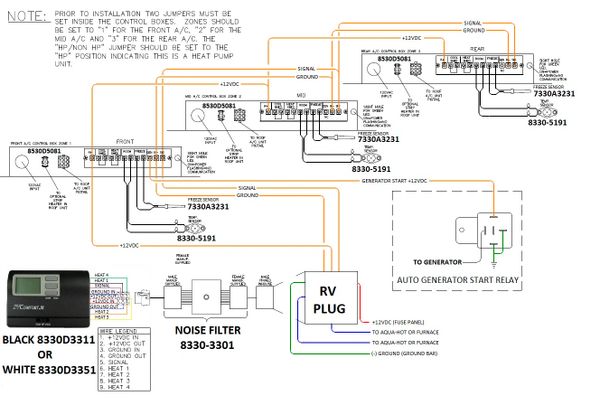

Note: To view a example of how controller is wired / integrated with the other components of the system, please click onto the second picture.
