Dinosaur Universal Ignitor Board Model UIB L w/ Spade, UIBL

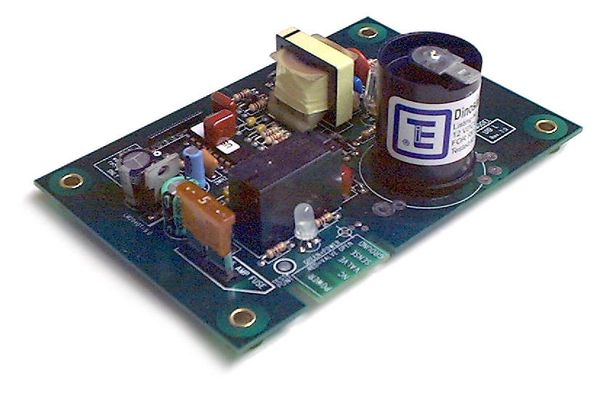

Dinosaur UIB L w/ Spade Universal Ignitor Board

IN-STOCK

Specifications:

• TEI Certified
• Superior Construction with plated and soldered through holes to virtually eliminate intermittent connections.
• 12VDC Operation
• 3-Try; Tries 3 times to ignite gas, with appropriate purge cycles before going into lockout.
• Highly reliable microcontroller for accurate and stable operation.

• Diagnostic LED light helps diagnose problems! Green-You have power to the board and NC terminal. Red-You have power to the gas valve terminal.
• Fuse and surge protection via the replaceable 5 Amp automotive fuse protects the board from short circuits on the Valve and NC terminals.
• Removable jumper for instant fire operation in water heaters and refrigerators.
• Size: 3.43" x 5.10"

• Made in the USA
• 3-Year Warranty

The UIB  L works with the following manufacturer's part numbers:
Mark 10-12-2-7-7-E312
Mark 10-12-15-7-7-E002
Mark 14-12-20-7-7-E002
05-159000-003
05-159000-053
05-159000-103
05-159007-103
05-259000-153
1721
3521
230481
230483
230587
315526
318816

Available Downloads:

• Dinosaur Electronics UIB L - Instructions
