Dometic / SeaLand Toilet Model Traveler 510H Repair Kit
Dometic / SeaLand Toilet Model Traveler 510H Repair Kits
IN-STOCK

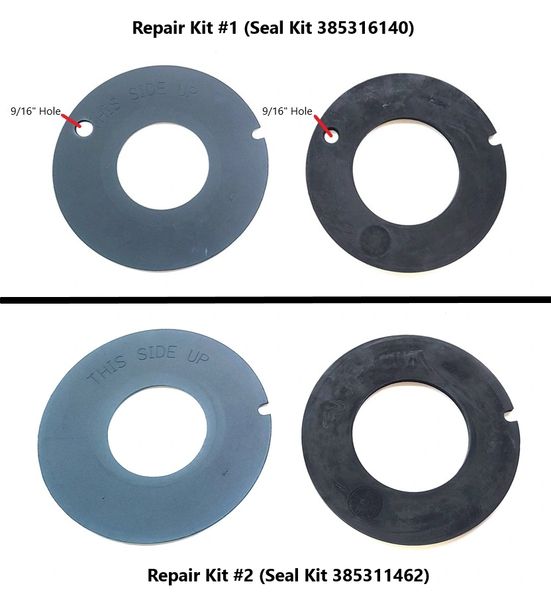

Kit #1 Original SeaLand Version Kit Contents (individual part links in blue):
Item#4 OEM Teflon & Rubber Seal Kit 385316140 (9/16" Holes)
Item#8 OEM White Ball / Shaft / Cartridge Kit (Black Cartridge) 385310681
Kit #2 Newer Dometic Version Kit Contents (individual part links in blue):
Item#4 OEM Seal Replacement Kit 385311462 (No 9/16" Holes)
Item#8 OEM White Ball / Shaft / Cartridge Kit (Black Cartridge) 385310681
____________________________________________________
Click The Down Arrow To View The Complete Parts List
Dometic / SeaLand Toilet Model 510H Exploded Parts View Links
Item#1 White Toilet Seat 385343829
Item#1 Bone Toilet Seat 385343831 (Replaced P# 340816)
Item#2 White China Bowl 385310739 (Non-Stocked Item)
Item#2 Bone China Bowl 385310740 (Non-Stocked Item)
Item#3 White Bowl / Base Clamp Kit 385310025 (Original SeaLand Version Toilet)
Item#3 Bone Bowl / Base Clamp Kit 385310048 (Newer Dometic Version Toilet)
Item#4 OEM Teflon & Rubber Seal Kit 385316140 (9/16" Holes)
Item#4 OEM Seal Replacement Kit 385311462 (No 9/16" Holes)
Item#4 After-Market Seal Replacement Kit 385311462-OS (No 9/16" Holes)
Item#5 Mounting Bolt Hardware Kit 385311117
Item#6 White Pedestal Cover Kit 385311540 (Non-Stocked Item)
Item#6 Bone Pedestal Cover Kit 385311541 (Non-Stocked Item)
Item#7 White Base Kit 385311128 (Non-Stocked Item)
Item#7 Bone Base Kit 385311129 (Non-Stocked Item)
Item#8 OEM White Ball & Shaft & Spring Cartridge Kit (Black) 385310681
Item#8 After-Market White Ball & Shaft & Spring Cart. Kit (Black) 385310681-OS
Item#9 White Pedal & Cover Kit 385311119
Item#9 Bone Pedal & Cover Kit 385311120
Item#10 White Pedal / White Pedal Cover / Spring Cartridge Kit 385311121
Item#10 Bone Pedal / Bone Pedal Cover / Spring Cartridge Kit 385311122
Item#11 OEM Water Valve Kit 385314349
Item#11 After-Market Water Valve Kit 385314349-OS
Item#12 OEM Spring Cartridge Kit 385310683
Item#13 Bone Supply Hose 385340177 (Replaced P# 385345377)
Item#14 OEM Hand Sprayer Vacuum Breaker Kit 385230335 (Replaced P# 385311542)
Item#14 OEM Vacuum Breaker (Non-Hand Sprayer Only) 385316906
Item#15 Vacuum Breaker With Chrome Hand Spray Kit 385319056 (Coming Soon)
Item#16 Chrome Hand Sprayer Only 385310809
Item#17 Chrome Hand Sprayer Bracket 385311131 (Non-Stocked Item)
Item#18 OEM Floor Flange Seal Kit 385311267 (Replaces P# 600343938)
Item#19 Floor 3 Inch Flange Spigot 385343765
Item#19 Floor 3 Inch Male Pipe Thread (MPT) Flange 385345889
Item#19 Floor 3 Inch Female Pipe Thread (FPT) Flange 385345892
