Dometic Furnace Model DFLA35211 Motor And Wheel Kit
Dometic Furnace DFLA35211 Blower Motor / Combustion Wheel / Blower Wheel Kit
Kit Contents (individual part links in blue):
Item #4546 OEM Blower Motor (link): 30710
Item #4631 OEM Combustion Wheel w/ Clamp (link): 30619
Item #4625 OEM Blower Wheel w/ Clamp (link): 33126
_______________________________

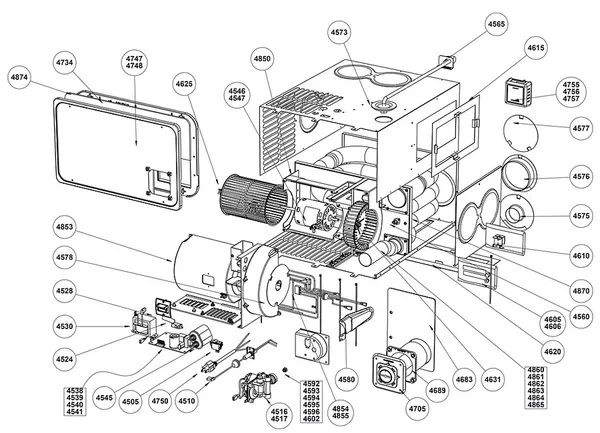

Dometic Furnace Model DFLA35211 Explode Parts View Link
Click The Down Arrow To View The Complete Parts List
Item #4505 On/Off Switch (link): 31092
Item #4510 Electrode (link): 35100
Item #4510 Electrode (link): 35100-OS
Item #4510 Electrode (link): 35100MC
Item #4517 24VAC Gas Valve (link): 31099
Item #4524 Curved Blade Sail Switch (link): 31094 NLA (SN 81689155 & Prior)
Click The Down Arrow To View The Complete Parts List
Item #4524 Curved Blade Sail Switch (link): 31094-OS (SN 81689155 & Prior)
Item #4524 Flat Blade Sail Switch Kit (link): 33082 (After SN 81689155)
Item #4524 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)(After SN 81689155)
Item #4524 Flat Blade Sail Switch Only (link): 33063 (After SN 81689155)
Item #4528 Sail Switch Mount (link): 33053
Item #4530 AC Transformer (link): 31095
Item #4539 Ignition Board Bracket 31243 (Non Stocked Item)
Item #4530 OEM 24VAC Ignition Board (link): 30621
Item #4545 Motor Capacitor (link): 34039
Item #4545 Motor Capacitor (link): 34039-OS
Item #4546 OEM Blower Motor (link): 30710
Item #4560 Limit Switch (link): 31091
Item #4560 Limit Switch (link): 31091-OS
Item #4560 Limit Switch (link): 31091MC
Item #4573 Gas Line Grommet (link): 35706
Item #4575 2 Inch Duct Adapter (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item #4576 4 Inch Duct Adapter (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item #4577 4 Inch Duct Cover Plate (link): 31361
Item #4578 Air Restrictor 31089 (Non stocked Item)
Item #4580 Burner Head (link): 30209
Item #4596 Orifice (Stamp #51 LP) (link): 31080
Item #4610 Casing Leg 31244 (Non Stocked Item)
Item #4615 Vertical Adapter Plate 30205 (Non Stocked Item)
Item #4620 Horizontal Adapter Plate (link): 30261
Item #4625 Blower Wheel w/ Clamp (link): 33126
Item #4631 Combustion Wheel w/ Clamp (link): 30619
Item #4705 Door Vent Assembly (link): 33050
Item #4734 Door Bezel 32612 (Non Stocked Item)
Item #4747 Black Door 33058 (Non Stocked Item)
Item #4748 White Door 33059 (Non Stocked Item)
Item #4750 Power Cord 30623 (Non Stocked Item)
Item #4755 Black Thermostat (link): 32300
Item #4756 Brown Thermostat (link): 38452 NLA
Item #4757 White Thermostat (link): 38453
Item #4850 Blower Housing (link): 30702
Item #4853 Front Blower Housing 32448 (Non Stocked Item)
Item #4854 Wiring Harness 33047 (Non Stocked Item)
Item #4864 Exhaust Adapter 33172 (Non Stocked Item)
Item #4870 Heat Exchanger 33302 (Non Stocked Item)
Item #4874 Door Gasket 33322 (Non Stocked Item)
