Dometic Refrigerator Eyebrow Control Board And Power Module Kit 3316995.900

IN STOCK

Dometic Refrigerator Eyebrow Control Board & Power Module Kit 3316995.900

3 Way Models Only

Color: Black

Please Note:

• This kit contains both the lower control board & the upper control board (eyebrow). Neither of these boards will communicate with other versions of boards. For example: this eyebrow board will not communicate with a lower 3 way universal board kit 3308742.000 or a 3316348.900 So if you replaced the the upper control board only thinking that this was solely problem and not the complete kit, the 3 way universal kit board 3308742.000 or 3316348.900 will not work with the new upper control board and vice versa. You must replace both boards.
• The lower board now contains a built in spark ignitor so your existing spark ignitor such as 2933096014 or 2931132019 must be removed and the electrode lead is now connected directly to the spark ignitor terminal of the new lower circuit board.
• If your old system has a thermocouple installed, this thermocouple is no longer needed and used for this new circuit board. The new lower circuit board uses the electrode as it flame sense.
• The white 4 pin header plug on the new control board is not connected to anything on your refrigerator and is used to program the board during manufacturing.

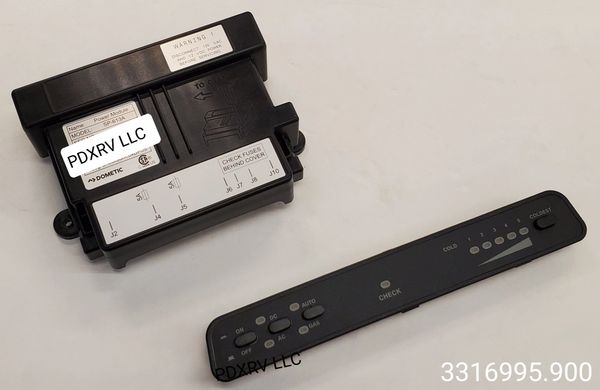

Kit Includes (links in blue):

• Eyebrow Control Board SP-219E (Dometic Old P# 4450007134 / New P# 4450021377)
• Power Module SP-613A (Dometic P# 4450020229)


Power Module Specifications:

• Input Rating: 12V, 1.2A
• Operating Temp: -25c to 70c


Applicable to Models With Product Numbers & Special Instructions:

• RM2354
• RM2663
• RM3663
• RM2454 w/ Product Number 921140114 (Note: when needing to replace the original upper control board "eyebrow" 2932884030 then use this kit 3316995.900. If the original upper control board 2932884030 is still good and you just need to replace the original lower control board 3850415013 then order (link) 3308742.000)
• RM2454 w/ Product Number 921140115 (Note: when needing to replace the original upper control board "eyebrow" 2932884030 then use this kit 3316995.900. If the original upper control board 2932884030 is still good and you just need to replace the original lower control board 3850415013 then order (link) 3308742.000)
• RM2454 w/ Product Number 921140118 (Note: when needing to replace the original upper control board "eyebrow" 2932884071 then use this kit 3316995.900. If the original upper control board 2932884071 is still good and you just need to replace the original lower control board 3850415013 then order (link) 3308742.000)
• RM2454 w/ Product Number 921140119 (Note: when needing to replace the original upper control board "eyebrow" 2932884071 then use this kit 3316995.900. If the original upper control board 2932884071 is still good and you just need to replace the original lower control board 3850415013 then order (link) 3308742.000)
• RM2454 w/ Product Number 921140135 (Note: when needing to replace the original upper control board "eyebrow" 2932884071 then use this kit 3316995.900. If the original upper control board 2932884071 is still good and you just need to replace the original lower control board 3850712013 then order (link) 3316348.900)
• RM2454 w/ Product Number 921140136 (Note: when needing to replace the original upper control board "eyebrow" 2932884071 then use this kit 3316995.900. If the original upper control board 2932884071 is still good and you just need to replace the original lower control board 3850712013 then order (link) 3316348.900)
• RM2454 w/ Product Number 936000136 (Note: when needing to replace the original upper control board "eyebrow" 2932884071 then use this kit 3316995.900. If the original upper control board 2932884071 is still good and you just need to replace the original lower control board 3850712013 then order (link) 3316348.900)
• RM2454 w/ Product Number 936000137 (Note: when needing to replace the original upper control board "eyebrow" 2932884071 then use this kit 3316995.900. If the original upper control board 2932884071 is still good and you just need to replace the original lower control board 3850712013 then order (link) 3316348.900)
