Dometic Refrigerator Model RM7551 Repair Kits
Dometic Refrigerator Model RM7551L Repair Kits
Applicable To Product Numbers:
921086596
921086630
921086662
921087036
Simply select which parts you wish to purchase from the option boxes above and it will automatically adjust purchase total as you add.
Repair Parts Options:
Item #108 Gas Burner Without Nozzle 2412802809 NLA (Replaced By P# 2412802825)
Item #108 Gas Burner Without Nozzle 2412802817 NLA (Replaced By P# 2412802825)
Item #493 Temperature Probe 2952248504
Item #521 Ignition Device 2412789105 NLA (Replaced By P# 2412789303)
Item #523 Complete Electronics 2412771301 NLA (Replaced BY P# 2412771103)
Item #523 Complete Electronics 2412771103 NLA (Replaced BY P# 2412771111)
___________________________________________________________________________
Dometic Refrigerator RM7551 Exploded Parts View Links

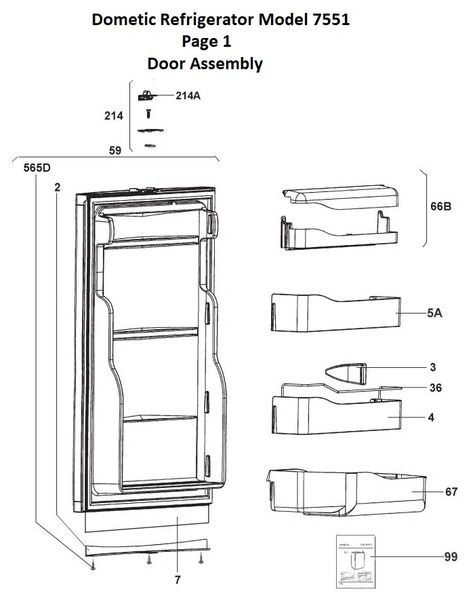

Page 1 Of The Exploded Parts View
Links In Blue If Available / Red If No Longer Available / Non Stocked Maybe Listed
Item #003 Bottle Holder 2412084002 NLA
Item #004 Bottom Door Shelf 2412077105 NLA
Item #005A Middle Door Shelf 2412075109 NLA
Item #036 Bottle Holder 2412104131 NLA
Item #066B Upper Door Shelf 2412382117 Special Order
Item #067 Crisper 2412078111 NLA
Item #214 Complete Door Lock 2412757607
Item #214A Door Lock Slider 2412883809 Special Order (Product Number 921086596)
Item #214A Door Lock Slider 2412883908 (Product Numbers 921086630; 921086662; 921087036)

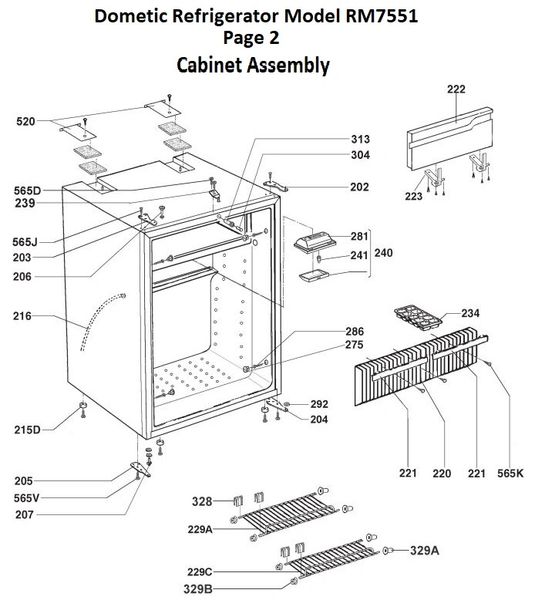

Page 2 Of The Exploded Parts View
Item #202 Upper Right Hinge 2412096204 NLA
Item #203 Upper Left Hinge 2412097202 NLA
Item #204 Lower Right Hinge 2412098101 NLA
Item #205 Lower Left Hinge 2412099109 NLA
Item #207 Hinge Pin 2926265402 NLA
Item #216 Drain Hose 2923346205 NLA
Item #222 Evaporator Flap (Freezer Door) 2412195204 NLA
Item #223 Evaporator Flap (Freezer Door) Hinge 2412125003
Item #229A Bottom Wire Shelf 2412943603 NLA
Item #229C Top Wire Shelf 2412943702 NLA
Item #239 Door Lock Bracket 2412884013 NLA (Product Numbers 921086596; 921086630; 921086662)
Item #239 Door Lock Bracket 2412884054 NLA (Product Number 921087036)
Item #240 Lighting Assembly 2951641220 NLA
Item #241 Light Bulb 2951388202 NLA
Item #281 Reflector 2951643127 NLA
Item #292 Hinge Cap 2412743110
Item #304 Lighting Sensor 2951380506 NLA
Item #328 Grating Fuse 2412082006 NLA
Item #329A Right Grating Fixing 2412083004 NLA
Item #329B Left Grating Fixing 2412083103 NLA

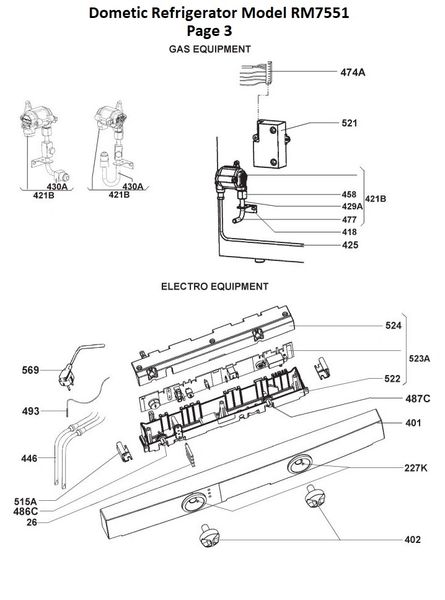

Page 3 Of The Exploded Parts View
Item #402 Knob 2412787208 NLA
Item #421B Gas Valve 2412798338 NLA (Replaced By P# 2412798387) (Product Numbers 921086596 & 921086630 Only)
Item #421B Gas Valve 2412798346 Special Order (Product Numbers 921086662 & 921087036 Only)
Item #446 12V Electric Element 2951694302 Special Order
Item #446 120V Electric Element 2952170559 Special Order
Item #493 Temperature Probe 2952248504
Item #521 Ignition Device 2412789105 NLA (Replaced By P# 2412789303)
Item #523 Complete Electronics 2412771301 NLA (Replaced BY P# 2412771103)
Item #523 Complete Electronics 2412771103 NLA (Replaced BY P# 2412771111)

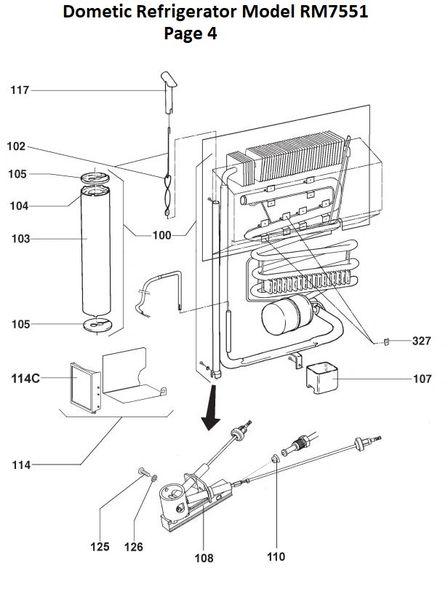

Page 4 Of The Exploded Parts View
Item #107 Evaporation Tray 2926019304 Special Order
Item #108 Gas Burner Without Nozzle 2412802809 NLA (Replaced By P# 2412802825)
Item #108 Gas Burner Without Nozzle 2412802817 NLA (Replaced By P# 2412802825)
Item #110 Gas Burner Nozzle 2922033069 NLA (Replaced By P# 2890483007)
Item #114 Gas Burner Cover Kit 2412559607
