Dometic Refrigerator Model RML8555 Repair Kits
Dometic Refrigerator RML8555 Repair Parts
UNDER DEVELOPMENT
Applicable To Product Numbers:
921087158
921087159
921087160
921087212
921087308
Please Note: 120V Electric Element 2412966513 NLA / Obsolete
Repair Parts Options:
- Item# 446 12V Electric Element 2412968105
- Item #108 Burner 2412802817 NLA (Replaced By P# 2412802825)
- Item #421B Gas Valve 2412798338 NLA (Replaced By P# 2412798387)
-
Item #493 Temperature Probe 2952248702
- Item #491 Relay 2952089007 NLA (Replaced By P# 2930385006)
- Item #521 Burner Control Device 2412789303
- Item #523A Electronic Kit 2413490208
__________________________________________________
Dometic Refrigerator RML8555 Exploded Parts View Links
Page 1 Of The Exploded Parts View
Item #107 Drip Cup 2923320002 NLA
Item #108 Burner Without Nozzle 2412802817 NLA (Replaced By P# 2412802825)
Item #110 Burner Nozzle KZ16 2922033101 NLA (Replaced By P# 2890483114)
Item #114 Burner Cover Kit 2412559607
Item #304 Lighting Sensor 2951380514 NLA
Item #421B Gas Valve 2412798338 NLA (Replaced By P# 2412798387)
Item #446 12V Electric Heater 2412968105
Item #446 120V Electric Heater 2412966513 NLA
Item #474A Burner Controller Harness 2412796407 NLA
Item #491 Relay 2952089007 NLA (Replaced By P# 2930385006)
Item #493 Temperature Sensor 2952248702
Item #521 Burner Controller 2412789303
Item #523A Electronic Kit 2413490208
____________________________________________________

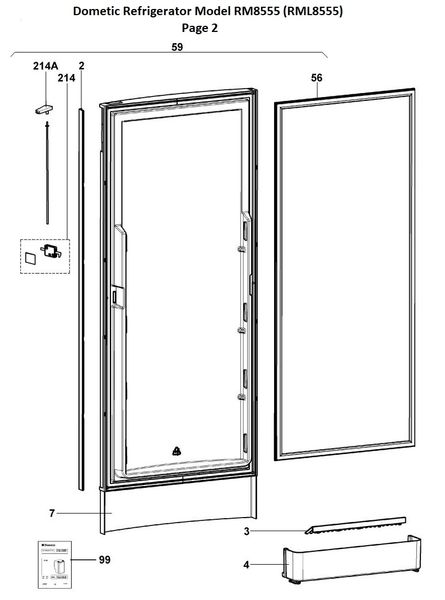

Page 2 Of The Exploded Parts View
Links In Blue If Available / Red If No Longer Available / Non Stocked Not Listed
Item #003 Bottle Retainer 2951237029
Item #004 Door Shelf 2413341005
Item #214 Door Lock 2413946308 (New P# 2890127117)
Item #214A Left Door Lock Button 2413260221 NLA
Item #214A Right Door Lock Button 2413260320
__________________________________________________________

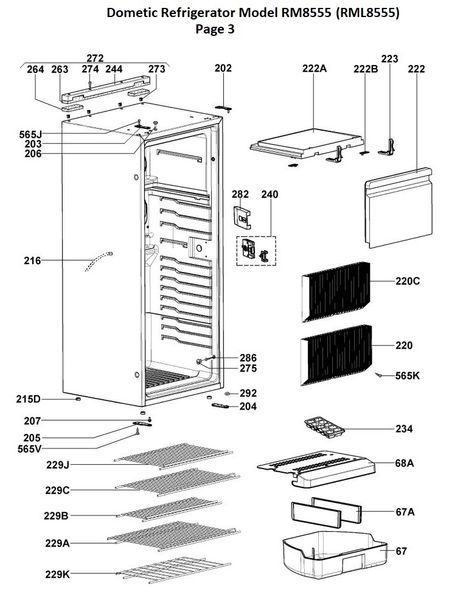

Page 3 Of The Exploded Parts View
Links In Blue If Available / Red If No Longer Available / Non Stocked Not Listed
Item #067 Crisper 2413367000 NLA
Item #068A Crisper Cover 2413956000 Special Order
Item #202 Hinge 2412096204 NLA
Item #203 Hinge 2412097202 NLA
Item#204 Hinge 2412098101 NLA
Item #205 Hinge 2412099109 NLA
Item #216 Drain Hose 2923346205 NLA
Item #222 Freezer Door 2412195410
Item #223 Freezer Door Hinge 2412125110
Item #229A Refrigerator Wire Shelf 2413379609
Item #229C Refrigerator Wire Shelf 2413375904
Item #229J Freezer Wire Shelf 2413399805 NLA
Item #229K Crisper Wire Shelf 2413916004
Item #240 Door Lock 2413267010 (Replaced By P# 2890371020)
Item #282 Door Lock Cover 2413268018
__________________________________________________________

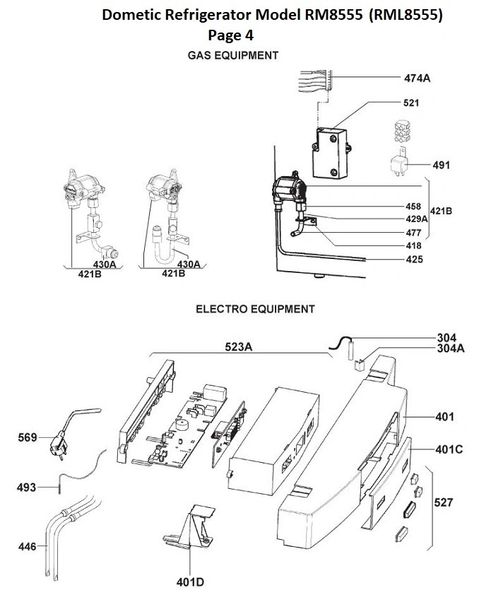

Page 4 Of The Exploded Parts View
Links In Blue If Available / Red If No Longer Available / Non Stocked Not Listed
Item #304 Lighting Sensor 2951380514 Non-Stock Item
Item #421B Gas Valve 2412798338 NLA (Replaced By P# 2412798387)
Item #446 120 Volt Heater 2412966513 NLA
Item #446 12 Volt Electric Heater / Element 2412968105
Item #491 Relay 2952089007 NLA (Replaced By P# 2930385006)
Item #493 Temperature Probe 2952248702
Item #521 Burner Control Device 2412789303
Item #523A Electronic Kit 2413490208
