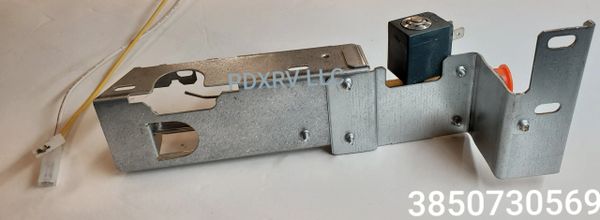

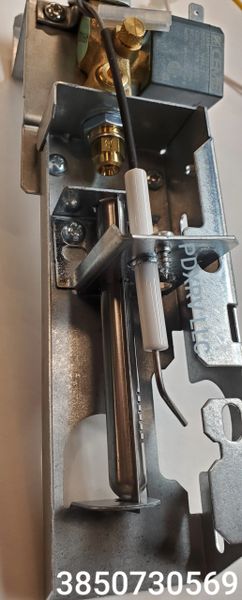

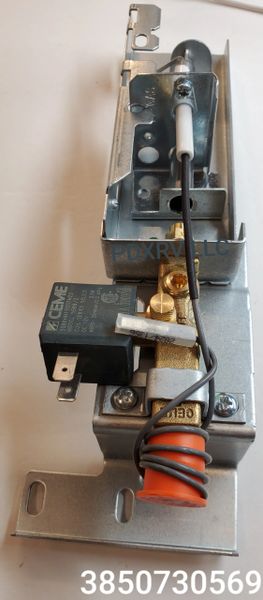

Dometic Refrigerator Valve / Burner / Jet Assembly 3850730569

Dometic Refrigerator Valve / Burner / #58 Jet 3850730569

IN STOCK

Note: This assembly is not completely applicable to older manual controls refrigerators and is only fully applicable to newer refrigerators that use auto ignition controls (valve 2932615012 only). The other parts of this assembly will be applicable for some older models. For example the electrode, burner and burner jet. Do not install this assembly on any model that does not have stamp #58 burner jet (P# 2007419217) installed per the model & product number parts list for your refrigerator.

Assembly Contents:

• Solenoid Valve 2932615012
• Washer 7345842012
• Nut 0140207044
• Washer 2007457001
• (#58) Jet 2007419217
• Burner Housing 2932603018
• Gas Valve Bracket 2932662014
• Test Port Plug 0169380003
• Screw 7241289615
• Burner w/ Electrode 2930697079


Model w/ Product Number Applicability:

• DM285LBX w/ Product # 958530294

• RM2652 w/ Product # 921144001
• RM2652 w/ Product # 921144002
• RM2652 w/ Product # 921144003
• RM2652 w/ Product # 921144004
• RM2652 w/ Product # 921144043
• RM2652 w/ Product # 921144044
• RM2652 w/ Product # 921144061
• RM2652 w/ Product # 921144062
• RM2652 w/ Product # 921144101
• RM2652 w/ Product # 921144102
• RM2652 w/ Product # 921144107
• RM2652 w/ Product # 921144108
• RM2652 w/ Product # 921144111
• RM2652 w/ Product # 921144112
• RM2652 w/ Product # 921144121
• RM2652 w/ Product # 921144122
• RM2652 w/ Product # 921144127
• RM2652 w/ Product # 921144128
• RM2652 w/ Product # 921144131
• RM2652 w/ Product # 921144132

• RM2652 w/ Product # 921144139
• RM2652 w/ Product # 921144140
• RM2652 w/ Product # 921144142
• RM2652 w/ Product # 921144143
• RM2652 w/ Product # 921144146
• RM2652 w/ Product # 921144147
• RM2652 w/ Product # 921144150
• RM2652 w/ Product # 921144151
• RM2652 w/ Product # 921144167

• RM2662 w/ Product # 921144063
• RM2662 w/ Product # 921144064
• RM2662 w/ Product # 921144103
• RM2662 w/ Product # 921144104
• RM2662 w/ Product # 921144109
• RM2662 w/ Product # 921144110

• RM2662 w/ Product # 921144133
• RM2662 w/ Product # 921144134
• RM2662 w/ Product # 921144137

• RM2662 w/ Product # 921144163
• RM2662 w/ Product # 921144164

• RM2663 w/ Product # 921144065
• RM2663 w/ Product # 921144066
• RM2663 w/ Product # 921144105
• RM2663 w/ Product # 921144106
• RM2663 w/ Product # 921144135
• RM2663 w/ Product # 921144136

• RM2852 w/ Product # 921146002

• RM3663 w/ Product # 921144011

• RM3804 w/ Product # 921600101
• RM3804 w/ Product # 921600201
• RM3804 w/ Product # 921600301
• RM3804 w/ Product # 921600401

• RM3862 w/ Product # 921146005
• RM3862 w/ Product # 921146006
• RM3862 w/ Product # 921146007
• RM3862 w/ Product # 921146008
• RM3862 w/ Product # 921146058
• RM3862 w/ Product # 921146059
• RM3862 w/ Product # 921146062
• RM3862 w/ Product # 921146063
• RM3862 w/ Product # 921146109
• RM3862 w/ Product # 921146110
• RM3862 w/ Product # 921146111
• RM3862 w/ Product # 921146112
• RM3862 w/ Product # 921146135
• RM3862 w/ Product # 921146136
• RM3862 w/ Product # 921146137
• RM3862 w/ Product # 921146138
• RM3862 w/ Product # 921146157
• RM3862 w/ Product # 921146158
• RM3862 w/ Product # 921146159
• RM3862 w/ Product # 921146160
• RM3862 w/ Product # 921146173
• RM3862 w/ Product # 921146174
• RM3862 w/ Product # 921146175
• RM3862 w/ Product # 921146176

• RM3962 w/ Product # 921146201
• RM3962 w/ Product # 921146202
• RM3962 w/ Product # 921146203
• RM3962 w/ Product # 921146204
• RM3962 w/ Product # 921146205
• RM3962 w/ Product # 921146206
• RM3962 w/ Product # 921146207
• RM3962 w/ Product # 921146208
• RM3962 w/ Product # 921146209
• RM3962 w/ Product # 921146210
• RM3962 w/ Product # 921146211
• RM3962 w/ Product # 921146212
• RM3962 w/ Product # 921146213
• RM3962 w/ Product # 921146214
• RM3962 w/ Product # 921146217
• RM3962 w/ Product # 921146218
• RM3962 w/ Product # 921146221
• RM3962 w/ Product # 921146222
• RM3962 w/ Product # 921146225
• RM3962 w/ Product # 921146226
• RM3962 w/ Product # 921146229
• RM3962 w/ Product # 921146230
• RM3962 w/ Product # 921146231
• RM3962 w/ Product # 921146232
• RM3962 w/ Product # 921146233
• RM3962 w/ Product # 921146234
• RM3962 w/ Product # 921146235
• RM3962 w/ Product # 921146236
• RM3962 w/ Product # 921146237
• RM3962 w/ Product # 921146238
• RM3962 w/ Product # 921146239
• RM3962 w/ Product # 921146240
• RM3962 w/ Product # 921146243
• RM3962 w/ Product # 921146244
• RM3962 w/ Product # 921146245
• RM3962 w/ Product # 921146246
• RM3962 w/ Product # 921146247
• RM3962 w/ Product # 921146248
• RM3962 w/ Product # 921146253
• RM3962 w/ Product # 921146254

• RM4872 w/ Product # 921146027
• RM4872 w/ Product # 921146028
• RM4872 w/ Product # 921146029
• RM4872 w/ Product # 921146030

• RM4873 w/ Product # 921146031
• RM4873 w/ Product # 921146032
• RM4873 w/ Product # 921146033
• RM4873 w/ Product # 921146034

List Is Not Complete
