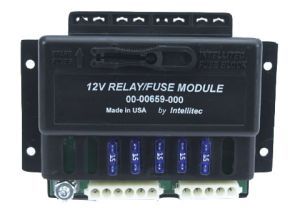

Intellitec 12V Relay / Fuse Module 00-00659-000

IN-STOCK

Intellitec’s 12V Five Relay / Fuse Module can be used to control various loads in a RV, bus or limousine electrical system. This unit can provide up to 50 Amps of combined current to the five outputs. Each of the fuses can be up to 20 Amps but the total combined amperage output must be no more then 50 amps.

One end of each of the relay coils is tied together in the module and the other end is brought out to a Mate-N-Lok connector to make installation and service a simple matter of plugging. This common connection can be connected to ground for “high side” switching, or fed from a 12 volt power source to allow for low side switching.

Specifications:

• Max Total Continuous Carry Current: 50 Amps Max
• Max Continuous Carry Current per fuse: 20 Amps Max
• Max Ambient Temp: 185° F
• Min Ambient Temp: -40° F

Plug / Harnesses Available For This Module (links in blue):

J2 Plug / Harness Link

J3 Plug / Harness Link
