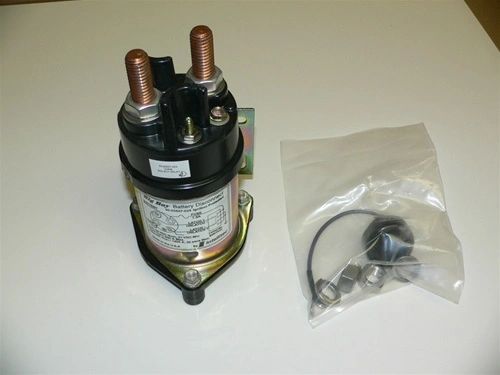

Intellitec Big Boy Relay 00-00507-524

Intellitec Big Boy Relay 00-00507-524

IN-STOCK

This 24V Isolator Relay provides a simple, reliable, and cost effective means of isolating two battery systems. It is installed between the two batteries, connecting them together for charging and aiding in starting when the chassis batteries are low.

Specifications:

• Actuation Current: 2.8 Amps
• Minimum Actuation Voltage: 18 Volts
• Maximum Continuous Carry Current: 200 Amps
• Maximum Short Term Carry Current: 1200 Amps
• Ambient Temperature Range: -40° to 185° F
• Contact Life Expectancy @ 200 Amps: 10,000 Cycles
• Actuation Time: 0.2 Seconds

• Intellitec Battery Disconnect Description and Key Features 00-00507-512
• Intellitec Big Boy Relay Typical Installation and Wiring Instructions 00-00507-512
