Intellitec Slide Out Controller 00-00719-200 J3 Plug And Harness

Intellitec Slide Out Controller 00-00719-200 J3 Plug And Harness

IN-STOCK

Applicable to slide out controller (link in blue): 00-00719-200

Length: 8 Inch

Configuration: 9 Position Male Plug w/ Female Pins

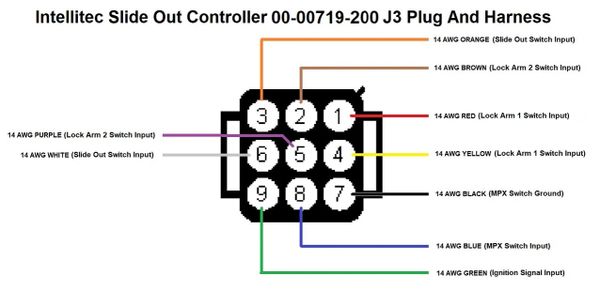

Plug Pin Out:

• Pin Position #1: 14 AWG Red
• Pin Position #2: 14 AWG Brown
• Pin Position #3: 14 AWG Orange
• Pin Position #4: 14 AWG Yellow
• Pin Position #5: 14 AWG Purple
• Pin Position #6: 14 AWG White
• Pin Position #7: 14 AWG Black
• Pin Position #8: 14 AWG Blue
• Pin Position #9: 14 AWG Green

Comes With 9 Each 14-16AWG Butt Connectors

SKU: PDX136
