Intellitec Slide Out Room Controller With Voice 00-00719-100

Intellitec Slide Out Room Controller With Voice 00-00719-100

IN STOCK

Replaces Part Number:

• 00-00719-000

Harnesses Available For This Controller (links in blue):

• Adapter Harness Link 11-00719-400
• J1 Plug And Harness Link
• J2 Plug And Harness Link
• J3 Plug And Harness Link

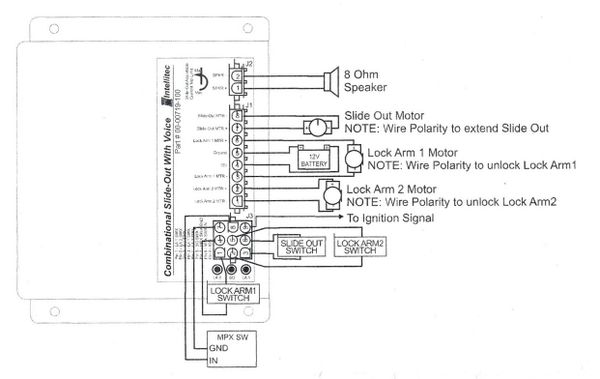

The Combination RV Slide-out Controller with Voice functions as three controllers. It independently controls two lock arm motors and a slide-out motor. The controller depends on several inputs: Lock Arm 1 Switch, Lock Arm 2 Switch, Slide-out Switch, MPX Switch, and an Ignition Input Signal, which is used to lock out control module.

Available Downloads:

• Intellitec Slide Out Room Controller, Voice, 00-00719-100 - Service Manual
