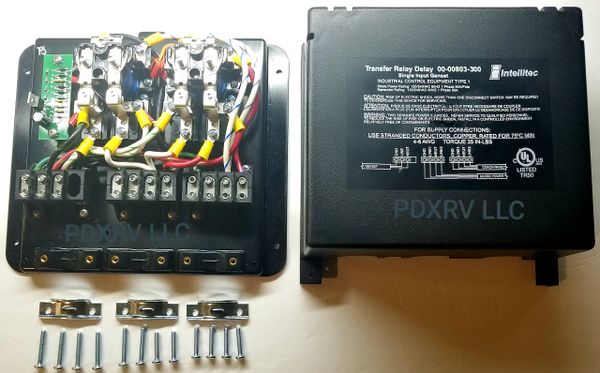

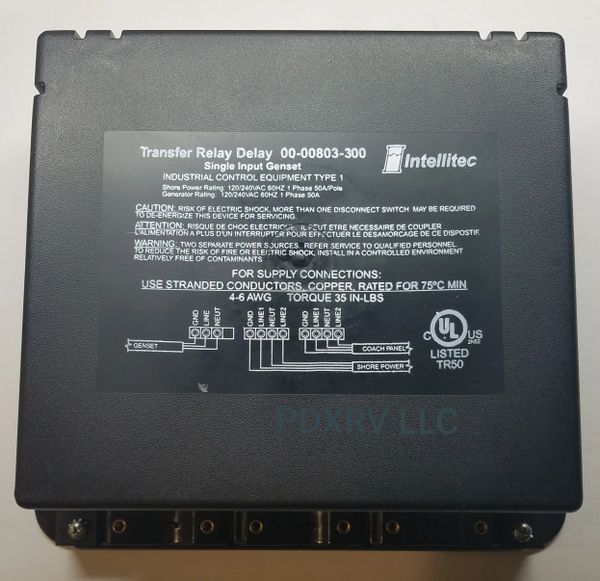

Intellitec Transfer GenSet Single 00-00803-300
Intellitec Transfer GenSet Single 00-00803-300
IN-STOCK

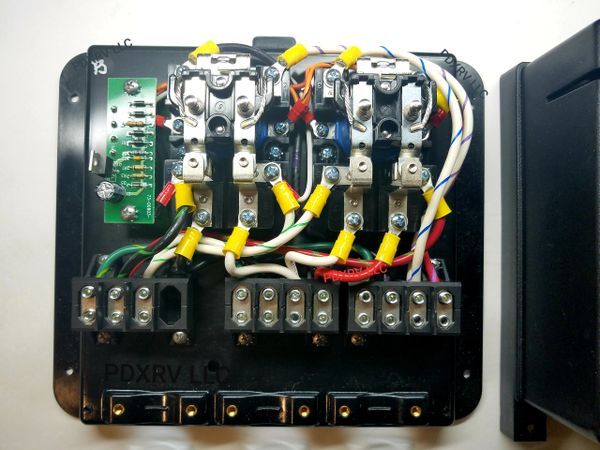

Description: The 50 Amp Transfer Relay is used to transfer the power source of a coach between the shore power and the generator. Power from the shore power cord is fed to the normally closed contacts of two contactors. This allows the power from both lines of the shore cord to pass through into the coach distribution panel. Power from the generator is fed to the normally open contacts and to a delay circuit on the printed circuit board. When the power from the generator is applied, the delay circuit senses the power from Line 1 and applies DC power to the contactor coils, after approximately 15 seconds. This pulls in the two contactors, applying the power from the generator to the coach. The unit can also be wired to act as a transfer between both lines of a 5.5KW or 6.5KW generator and a 30Amp shore power cord.
Key Features:
- Shore Power Rating: 120/240VAC 60HZ 1 Phase 50A/Pole
- Generator Rating: 120/240VAC 60HZ 1 Phase 50A
- Designed for RV’s
- Transfers 120 VAC between 2 sources
- UL & CSA approved
Replaces / Supersedes / Known Under:
- 00-00803-100
