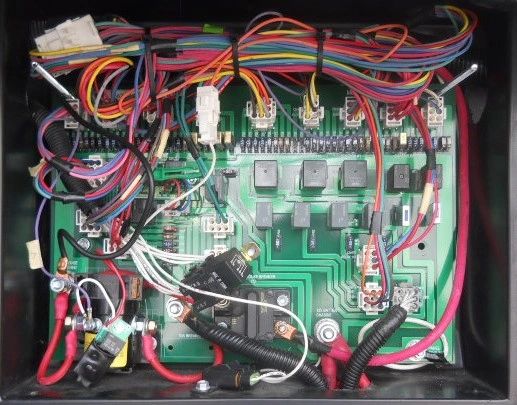

KIB Electronics Battery Disconnect Latching Relay LR9806C-BIP

KIB Electronics Battery Disconnect Latching Relay LR9806C-BIP

Specifications:

• Coil Rating 12VDC - 4.4 Ohms
• Non-Poliarity Sensitive
• Min. Activation Voltage 7VDC
• Contact Type: 110 amps carry 6-36VDC
• Latch Type: Mechanical Push On/Push Off Coil Activated

Commonly confused with part number (link): LR9806J-BIP

C-BIP version has a small circuit board attached to the "positive" terminal of the relay coil. This is a protection device that removes voltage from the coil after a time delay to protect the coil should the switch become stuck in the closed position, or the wiring become grounded.
Used extensively on Monaco & Holiday Rambler RV's

Known Under / Replaces / Supersedes:

• LR9806CBIP
• LR9806C
