KIB Electronics DSC100 Slide Out Controller CON 2 SLIDE MOTOR A Plug And Harness

KIB Electronics DSC100 Slide Out Controller CON 2 Slide Motor A Plug And Harness

IN-STOCK

Applicable to KIB Electronics Slide Out Controller (link in blue): DSC100

6 Position Male Plug w/ Female Pins

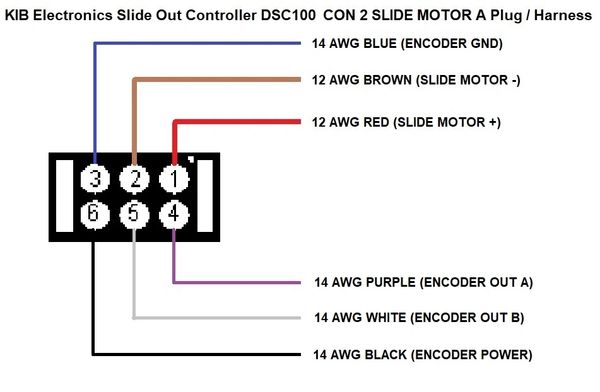

Pin Out / Wire Gauge Configuration:

• Pin #1 / 12 AWG RED (SLIDE MOTOR +)
• Pin #2 / 12 AWG BROWN (SLIDE MOTOR -)
• Pin #3 / 14 AWG BLUE (ENCODER GND)
• Pin #4 / 14 AWG PURPLE (ENCODER OUT A)
• Pin #5 / 14 AWG WHITE (ENCODER OUT B)
• Pin #6 / 14 AWG BLACK (ENCODER POWER)

Approximate Length: 8 Inches

SKU: PDX127
