KIB Electronics DSC100 Slide Out Controller CON 6 SLIDE MOTOR B Plug And Harness

$30.22 $23.95

KIB Electronics DSC100 Slide Out Controller CON 6 Slide Motor B Plug And Harness

IN-STOCK

Applicable to KIB Electronics Slide Out Controller (link in blue): DSC100

6 Position Male Plug w/ Female Pins

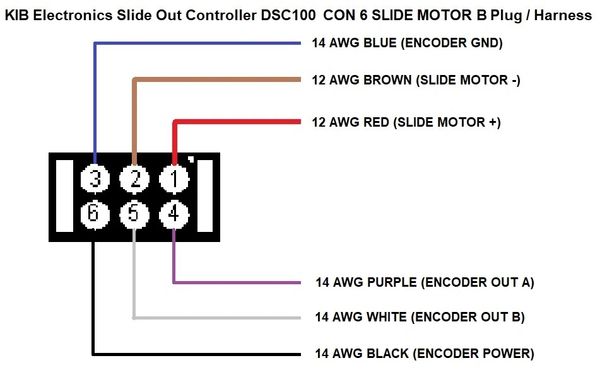

Pin Out / Wire Gauge Configuration:

  • Pin #1 / 12 AWG RED (SLIDE MOTOR +)
  • Pin #2 / 12 AWG BROWN (SLIDE MOTOR -)
  • Pin #3 / 14 AWG BLUE (ENCODER GND)
  • Pin #4 / 14 AWG PURPLE (ENCODER OUT A)
  • Pin #5 / 14 AWG WHITE (ENCODER OUT B)
  • Pin #6 / 14 AWG BLACK (ENCODER POWER)

    Approximate Length: 8 Inches

    SKU: PDX127
