KIB Electronics High Side Driver DTM100-5M Harness / Plug

KIB Electronics High Side Driver DTM100-5M Harness / Plug

IN-STOCK

Applicable To High Side Driver (link in blue): DTM100-5M

Length: 8 Inch

4 Position Male Plug w/ Male Pins

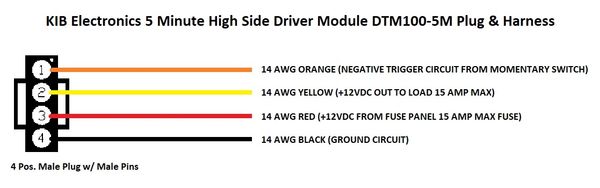

Plug / Harness Configuration:

Pin#1 / 14 AWG ORANGE (FROM MOMENTARY SWITCH/ NEGATIVE TRIGGER SIGNAL)

Pin#2 / 14 AWG YELLOW (+12VDC OUT TO LOAD / 15AMP MAX LOAD)

Pin#3 / 14 AWG RED (+12VDC FROM FUSE PANEL / 15 AMP MAX FUSE)

Pin#4 / 14 AWG BLACK (GROUND)

SKU: PDX156
