KIB Electronics Slide Out Controller SOC16615988 CON1 Plug And Harness

KIB Electronics Slide Out Controller SOC16615988 CON1 Plug And Harness

IN-STOCK

Applicable to Slide Out Controller (link in blue): SOC16615988

Length: 8 Inch

12 Position Male Plug w/ Male Pins

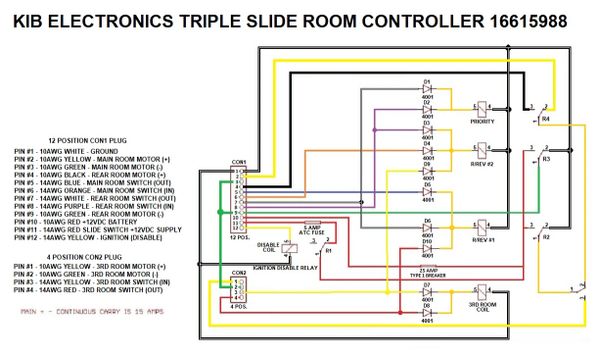

Plug / Harness Configuration:

Pin#1 (10 AWG WHITE) (CONTROLLER GROUND)

Pin#2 (10 AWG YELLOW) (MAIN ROOM MOTOR POSITIVE)

Pin#3 (10 AWG GREEN) (MAIN ROOM MOTOR NEGATIVE)

Pin#4 (10 AWG BLACK) (REAR ROOM MOTOR POSITIVE)

Pin#5 (14 AWG BLUE) (MAIN ROOM SWITCH - OUT)

Pin#6 (14 AWG ORANGE) (MAIN ROOM SWITCH - IN)

Pin#7 (14 AWG WHITE) (REAR ROOM SWITCH - OUT)

Pin#8 (14 AWG PURPLE) (REAR ROOM SWITCH - IN)

Pin#9 (10 AWG GREEN) (REAR ROOM MOTOR NEGATIVE)

Pin#10 (10 AWG RED) (+12VDC BATTERY CONTROLLER POWER)

Pin#11 (14 AWG RED) (ALL SLIDE SWITCHES +12VDC SUPPLY)

Pin#12 (14AWG YELLOW) (IGNITION DISABLE)

SKU: PDX159
