Lippert And Venture Landing Gear Motor 196308

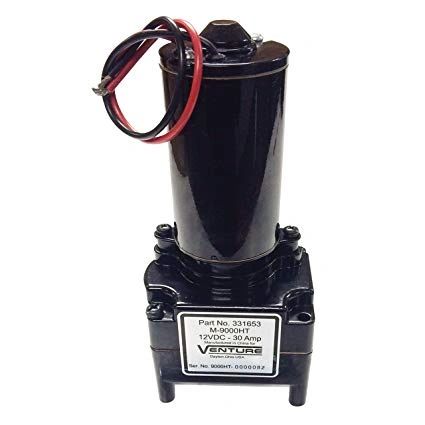

Lippert And Venture Landing Gear Heavy Duty Motor 196308

IN-STOCK

Note: the part number has changed to LG-242800

Information:

• Also known under Venture part number: M-9000HT (331653)
• Also known under Stromberg Carlson part number: LG-196308

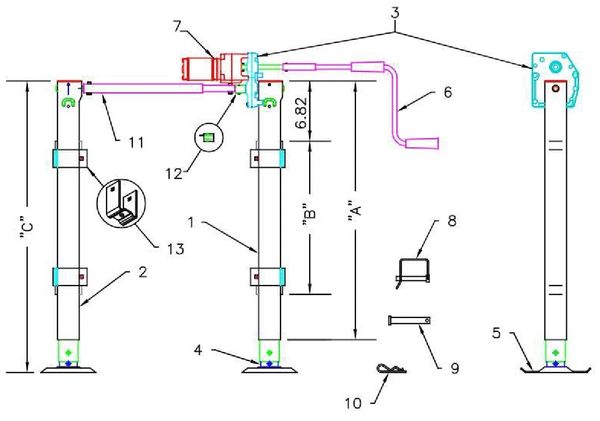

• Item number 7 of the exploded parts view
• Includes 2 Each Motor Mount Bolts (3-1/2" x 1/4" x 20 TPI)

Specifications:

• Voltage: 12VDC
• Amperage: 30 Amps (may require a 40 amp fuse under max load)
• RPM: 5430

• Rating: 6500 Lbs

To order the Lippert And Venture standard duty motor, please click onto this link: 142178

To order the Tuson standard duty motor, please click onto this link: 141893

Available Downloads:

• Lippert In-Wall Slide-Out Controllers, Motors, and Components
