Lippert Polarity Reversing Solenoid 136046

Lippert Polarity Reversing Solenoid 214-1211-A11-06 No Longer Offered From Lippert

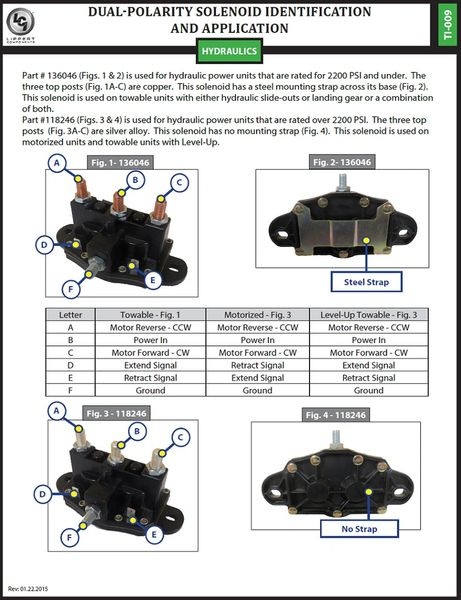

Lippert recommends using the silver contact solenoid (link): 118246

Description:

• Premium Trombetta OEM with Copper Contacts 214-1211-A11-06
• Metal plate on bottom for mounting band
• 12 Volt
• Terminals: 6
• Reversible
• Intermittent Duty

Specifications:

• DPDT Motor Reversing Solenoid
• (4) 5/16"-24 Threaded Studs for Battery & Motor
• (2) 6.4mm Blade Terminals for Solenoid Operation
• (2) 7.1mm x 10.4mm Mounting Slots
• 150 Surge Amps
• 75 Amps Carry for 5 Minutes Max

Applicable To:

• Motor Home Slide Out, RV Leveling Systems & Other Reversible Motors that Normally Require Multiple Solenoids.
• Lippert pumps rated at 2200 PSI and less

Known Under / Supersedes / Replaces:

•  136046 (Lippert)
• 214-1211-A51 (Trombetta) - With Copper Contacts

Available Downloads:

• Lippert Coachstep Motor and Module Replacement - TI-145
• Lippert LCI Electronic Leveling Troubleshooting Guide TI-005
