Parallax 9 Circuit Fuse Box FB9

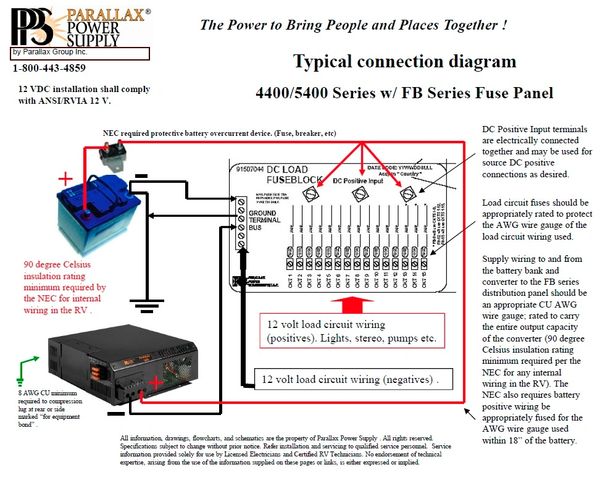

The FB9 is a fuse panel with 9 DC load circuits. This model has 3 large non-fused terminals rated for 2-14AWG wires. These terminals are common to one another and are the supply side for the branch circuits. Branch circuits rated for 20ADC maximum and branch circuit terminals are rated for 12-16AWG. A feature of the FB9 are the three DC positive inputs for converter and batteries. It is built with a galvanized metal chassis and hinged cover. Included is a terminal bar for 12 volt negative connections and standard automotive blade type fuses. The FB9 can be used with any "Deckmount" style converter or system without a built-in DC load distribution panel.

These are now only available as 11 position panel.  New part # PFB11

Specifications

Listed:

ETL Listed

Special Features:

Nine DC load circuits; can be used with any "deckmount" style converter or system without a built-in DC load distribution panel;

Rated:

3 large non-fused terminals rated for 2-14AWG wires & branch circuits are rated for 12-16AWG wires

Series:

FB Series

Type:

Fuse Panel
