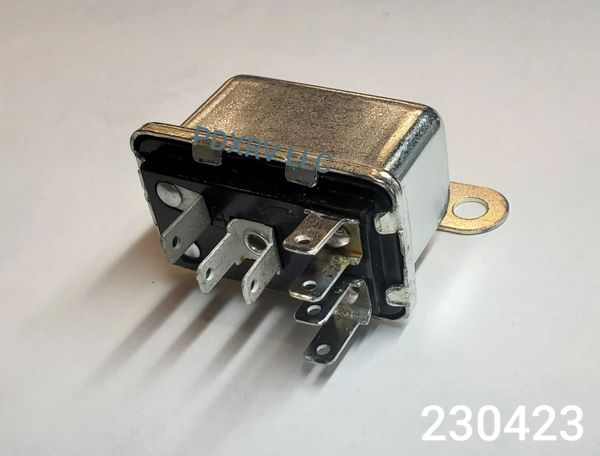

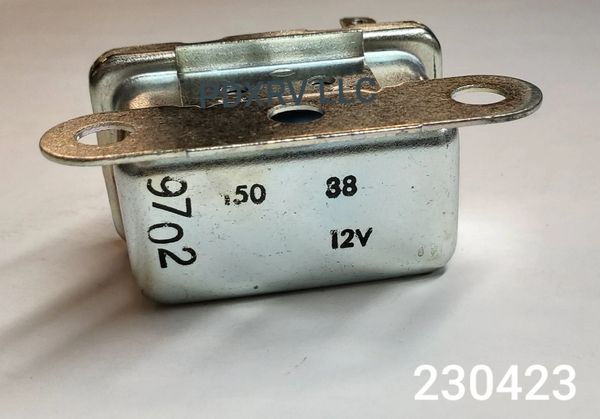

    • Suburban Furnace Thermostat Relay 230423

    $0.00
    This item is out of stock

    Suburban Furnace Thermostat Relay 230423 No Longer Available

    Replaces Part Number: 230530 & 230503

    Relay Terminal Configuration:

    Terminal #1 Ground (to ground terminal bar)
    Terminal #3 Thermostat Return Signal (+12VDC when thermostat closes)
    Terminal #2 +12VDC Out to Blower Motor (when relay closes)
    Terminal #4 +12VDC Supply Power From RV Fuse Box

    Applicable to Models (links below when availabe):

    NT-12C

    NT-12EC

    NT-12EF

    NT-12EP

    NT-12F

    NT-12FC

    NT-12MEC

    NT-12MEF

    NT-12MEP

    NT-16C

    NT-16EC

    NT-16EF

    NT-16EP

    NT-16F

    NT-16FC

    NT-16MEC

    NT-16MEF

    NT-16MEP

    NT-24M

    NT-30M

    NT-34L

    NT-34M

    NT-42S

    NT-42T

    NT-34S
