Suburban Water Heater Model SW10DELC Tune-Up Kit
IN-STOCK
Tune-Up Kit #1 120VAC Element / Thermostat Contents (links in blue):
Item#42 120VAC Thermostat / ECO Kit (link): 232306MC
Item#33 120VAC Element Switch (link): 233358 (New P# 525001)
Item#28 120VAC Electric Element (link): 520900
Tune-Up Kit # 2 Gas / Burner Contents (links in blue):
Item#41 12VDC Thermostat / ECO Kit (link): 232282 (New P# 525007)
Item#26 Main Burner Assembly (link): 011030 (must reuse your existing orifice)
Item#21 Electrode (link): 232258-OS
Not Shown Electrode Wire (link): 232459 (New P# 232456)
Tune-Up Kit # 3 120VAC Element & Gas / Burner Kit Contents (links in blue):
Item#42 120VAC Thermostat / ECO Kit (link): 232306MC
Item#33 120VAC Element Switch (link): 233358 (New P# 525001)
Item#28 120VAC Electric Element (link): 520900
Item#41 12VDC Thermostat / ECO Kit (link): 232282 (New P# 525007)
Click The Down Arrow To View Complete Kit #3 List
Item#26 Main Burner Assembly (link): 011030 (must reuse your existing orifice)
Item#21 Electrode (link): 232258-OS
Not Shown Electrode Wire (link): 232459 (New P# 232456)

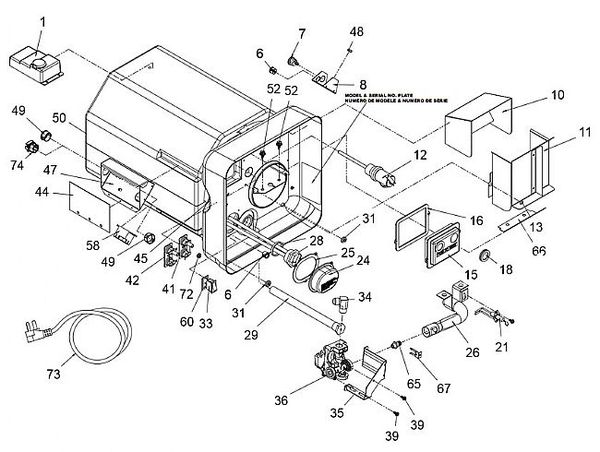

Item#1 OEM Module Board (ignition board) 520814
Item#1 After-Market Module Board (ignition board) 520814MC
*Not Shown* Module Board Cover 090487
Item#8 D.C. Junction Box Assembly 090517 (Non-Stocked Item)
Item#10 Back Flue Collector Assembly 102740 (Non-Stocked Item)
Item#11 Front Flue Collector Assembly 102776 (Non-Stocked Item)
Item#12 Pressure Relief Valve 161230 (Replaces P# 161157)
Item#15 Thermostat / Hi-Limit Cover 090562 (New P# 525022)
Item#16 Cover Gasket 070987
Item#18 Grommet 070874 (New P# 525027)
Item#21 Electrode 232258
Item#24 Element Cover 090445 (New P# 090681)
Item#25 Element Cover Gasket 070988
Item#26 Burner Assembly 011030
Item#65 Burner #61 Orifice 180323
Item#67 Orifice Clip 063827
Item#28 120VAC Element With Gasket 520900
Item#29 Anode Rod 232767 Magnesium (New P# 233514)
Item#29 Anode Rod 232768 Aluminum (New P# 233516)
Item#33 Element Switch 232259 (New P# 525001)
Item#34 Gas Fitting 170374 (New P# 525025)
Item#35 Gas Valve Mounting Bracket 063779
Item#36 Gas Valve 161255 (New P# 161306)
*Not Shown* Solenoid Kit 521073
Item#41 OEM 12VDC 130° Thermostat / Hi-Limit Switch 232282 (New P# 525007)
*Optional Higher Temperature Thermostat* OEM 12VDC 140° Thermostat / Hi-Limit Switch 232319
Item#42 OEM 120VAC 130° Thermostat / Hi-Limit Switch 232306
*Optional Higher Temperature 120VAC Thermostat* OEM 120VAC 140° Thermostat / Hi-Limit Switch 232317
Item#44 Junction Box Cover 090576
Item#45 Gas Inlet Grommet 070989
Item#47 A.C. Junction Box Assembly 090575 (Non-Stocked Item)
*Not Shown* Switch and Plate Assembly 232882 *White* (Replaces P# 232881)
*Not Shown* Switch and Plate Assembly 233111 *Black*
*Not Shown* Modern Version Switch And Plate Assembly AH-ASY-3-5-003 *Black*
*Not Shown* Electrode Wire 232459 (New P# 232456)
Item#58 Relay 232948
Item#73 Power Cord 233401 (Non-Stocked Item)
*Not Shown*: Black Water Heater Door 6259AEB
*Not Shown*: Polar White Water Heater Door 6259APW
*Not Shown*: Colonial White Water Heater Door 6259ACW
