Suburban Water Heater Model SW10DEM Tune-Up Kit
Applicable to this model after serial # 953601021 and to serial # 164015530 only
Tune-Up Kit #1 120VAC Element / Thermostat Contents (links in blue):
Item#36 120VAC Thermostat / Hi-Limit Switch (link): 232306MC
Item#33 120VAC Element Switch (link): 233358 (New P# 525001)
Item#43 120VAC Element With Gasket (link): 520900
Tune-Up Kit #2 Gas / Burner Contents (links in blue):
Item#37 12VDC Thermostat / ECO Kit (link): 232282 (New P# 525007)
Item#27 Main Burner Assembly With Orifice (link): 010843 (New P# 525023)(S/N Specific)
Item#26 Electrode (link): 232258-OS
Tune-Up Kit #3 120VAC Element Kit / Gas Burner Kit Contents (links in blue):
Item#36 120VAC Thermostat / Hi-Limit Switch (link): 232306MC
Item#33 120VAC Element Switch (link): 233358 (New P# 525001)
Item#43 120VAC Element With Gasket (link): 520900
Item#37 12VDC Thermostat / ECO Kit (link): 232282 (New P# 525007)
Click The Down Arrow To View The Complete Kit # 3 List
Item#27 Main Burner Assembly With Orifice (link): 010843 (New P# 525023)(S/N Specific)
Item#26 Electrode (link): 232258-OS
Item#1 Module Board Cover 090487 (Applicable to 520814 & 520814MC Only)
Item#4 12VDC Junction Box Cover 090344
Item#7 Off-White Switch Plate With Switch & Indicator 232795
Item#7 White Switch Plate With Switch & Indicator 232589
Item#7 Black Switch Plate With Switch & Indicator 232229
Item#9 Module Board Insulator 070538 (Replaces P# 070807, Not Applicable To P#'s 520814 & 520814MC)
Item#10 OEM Module Board (ignition board) 520814
Item#10 After-Market Module Board (ignition board) 520814MC
Item#11 120VAC Junction Box Cover 090464
Item#15 Flue Box Assembly 101777 (New P# 521168)(Older One Piece Design, See Item #'s 68 & 69 For Newer Two Piece Version)
Item#18 Pressure Relief Valve 161230 (Replaces P# 161157)
Item#20 Thermostat Cover Gasket 070987
Item#21 Thermostat Cover 090562 (New P# 525022)
Item#23 Electrode Mounting Bracket 063187 (Applicable To S/N 164015530 & Below)
Item#24 Thermostat / ECO Cover Grommet 070874 (New P# 525027)
Item#26 Electrode 232258 (New P# 525005)
Item#27 Burner Assembly With Orifice 010843 (Applicable To S/N 164015530 & Below)

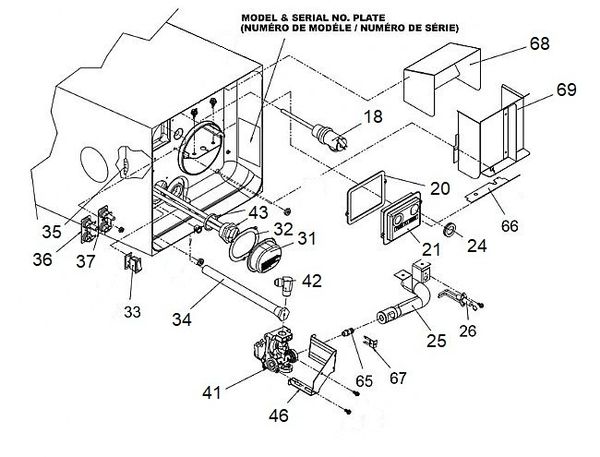

Item#25 / Pic#2 Burner Assembly 011030 (Applicable To S/N's After 164015530)
Item#65 / Pic#2 Burner #61 Orifice 180323 (Applicable To S/N's Above 164015530)
Item#67 / Pic#2 Orifice Clip 063827 (Applicable To S/N's Above 164015530)
Item#29 1/4 Inch Loxit Nut 171463 (Replaces P# 171475) (Applicable To S/N 164015530 & Below)
Item#31 Element Cover 090445 (New P# 090681)
Item#32 Element Cover Gasket 070988
Item#33 120VAC Electric Element Switch 233358 (New P# 525001)
Item#34 Anode Rod 232767 Magnesium (New P# 233514)
Item#34 Anode Rod 232768 Aluminum (New P# 233516)
Item#35 Gas Inlet Grommet 070989
Item#36 OEM 120VAC 130° Thermostat / Hi-Limit Switch 232306
*Optional Higher Temperature 120VAC Thermostat* OEM 120VAC 140° Thermostat / Hi-Limit Switch 232317
Item#37 OEM 12VDC 130° Thermostat / Hi-Limit Switch 232282 (New P# 525007)
*Optional Higher Temperature Thermostat* OEM 12VDC 140° Thermostat / Hi-Limit Switch 232319
Item#41 / Pic#2 Gas Valve 161255 (Applicable To S/N's After 164015530)
*Not shown* Replacement Gas Valve Solenoid Kit 521073 (Applicable To Gas Valve 161255 Only)
Item#42 Gas Fitting 170374 (New P# 525025)
Item#43 120VAC Electric Element 520900 (Replaces P# 520789)
Item#44 Gas Valve 161109 (Applicable To S/N 164015530 & Below)
*Not Shown* Replacement Gas Valve Solenoid Kit 521072 (Applicable To Gas Valve 161109 Only)
Item#45 Manifold Outlet 171420 (Applicable To S/N 164015530 & Below)
Item#46 / Pic#2 Gas Valve Mounting Bracket 063779 (Applicable To S/N's After 164015530)
Item#48 Valve Mounting Bracket 063245 (Applicable To S/N 164015530 & Below)
Item#50 Burner Bracket 063444 (Applicable To S/N 164015530 & Below)
Item#52 1/4" Loxit Nut 171463 (Applicable To S/N 164015530 & Below)
Item#68 / Pic #2 Black Flue Collector 102740 (2 Piece Design / Newer Models Only)
Item#69 / Pic #2 Front Flue Collector 102776 (2 Piece Design / Newer Models Only)
*Not Shown: Electrode Wire 232454
*Not Shown: Black Water Heater Door 6259AEB
*Not Shown: Polar White Water Heater Door 6259APW
*Not Shown: Colonial White Water Heater Door 6259ACW
Please Note: All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers.
