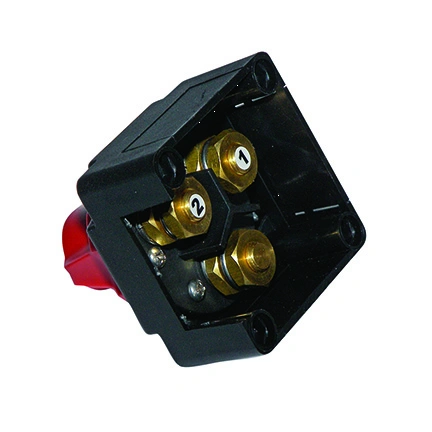

WirthCo Rotary Dial Disconnect Switch 20393

WirthCo Rotary Dial Disconnect Switch 20393

IN-STOCK

For use on a dual 12 Volt battery application - 4 Position

• For Application Up to 48 Volts
• ISO 8846 Approved
• Continuous Rating: 300 Amps
• Intermittent Rating: 1000 Amps / 5 Seconds
• Crank Rating: 700 Amps / 10 Seconds
• Can Be Used with 1 or 2 Batteries
• Dimensions: 2-3/4" L x 2-3/4" W x 3" H
• Recess, Flush Top Mount/4 Screw Holes
• Battery Doctor® Label Glows in the Dark
• Removable Back Plate
• Cable Knockout Plate on All 4 Sides
• 10mm Threaded Studs with Nuts
