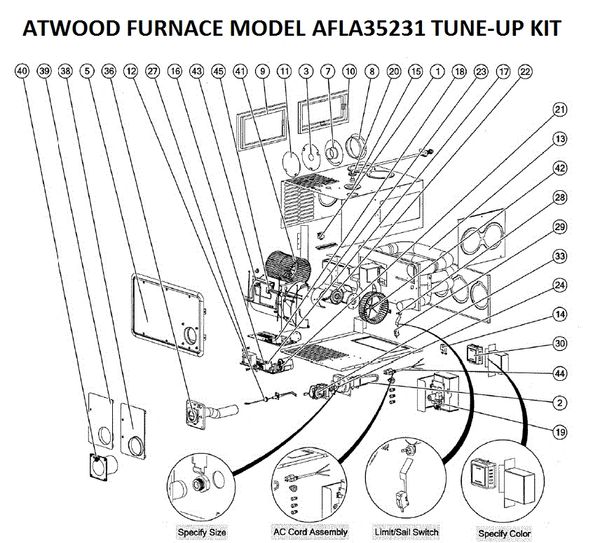

Atwood Furnace Model AFLA35231 Tune-Up Kits
Kit #1 Only applicable to serial number before: 81689155
Tune-Up Kit #1 Includes (individual part links in blue):
Kit # 2 Only applicable to serial number after 81689155
Tune-Up Kit #2 Includes (individual part links in blue):
*Not Shown* Blower Motor And Wheel Kit 30710/30619/33126
Item#1 Not Applicable
Item#2 Burner Assembly 30209
Item#3 Combustion Air Restrictor Kit 31089
Item#4 Arctic White Door Kit 30487
Item#4 Black Door Kit 30499
Item#5 Arctic White Door Kit 31845
Item#5 Black Door Kit 31861
Item#7 2 Inch Duct Adapter 36688
Item#8 4 Inch Duct Adapter 31474
Item#9 Side Discharge Adapter Plate Kit 30205
Item#10 Bottom Plate Adapter Kit 30261
Item#11 4 Inch Duct Cover Plate 31361
Item#12 Electrode 35100
Item#13 Heat Exchanger 35707
Item#14 Leg Casing Kit 31244
Item#15 Gas Line Grommet 35706
Item#16 AC DSI Bracket 31243
Item#17 Ignition Board 30621
Item#18 Not Applicable
Item#19 Not Applicable
Item#20 Manifold Extension Kit 35712
Item#21 Capacitor 34039
Item#22 OEM AC Motor Kit 30710
Item#24 #51 Orifice 31080
Item#24 3.0MM Orifice 31088
Item#27 AC Transformer Kit 31095
*Not Shown* On/Off Switch 31092
Item#28 Limit Switch 31091
Item#29 OEM Sail Switch 31094 NLA (Replaced By P# 31094MC)
Item#29 OEM Sail Switch 33082 (New P# 36165)
Item#30 Thermostat, Black 32300
Item#30 Thermostat, Brown 38452 NLA
Item#30 Thermostat, White 38453
Item#33 24VAC Gas Valve Kit 31099
Item#37 Door Vent Kit (.930 V4) 31812
Item#41 Blower Wheel Kit 33126
Item#42 Combustion Wheel Kit 30619
*Not Shown* AC Wiring Harness 31123
*Not Shown* Cord Assembly Kit 30623
Atwood AFLA35231 Mobile Service Training Manual 2007
Atwood HydroFlame AFLA35231 Service Manual 2004
Atwood HydroFlame AFLA35231 Service Manual 2007
Atwood AFLA35231 Time Delay, Sail Switch, And Limit Switch Important Info
