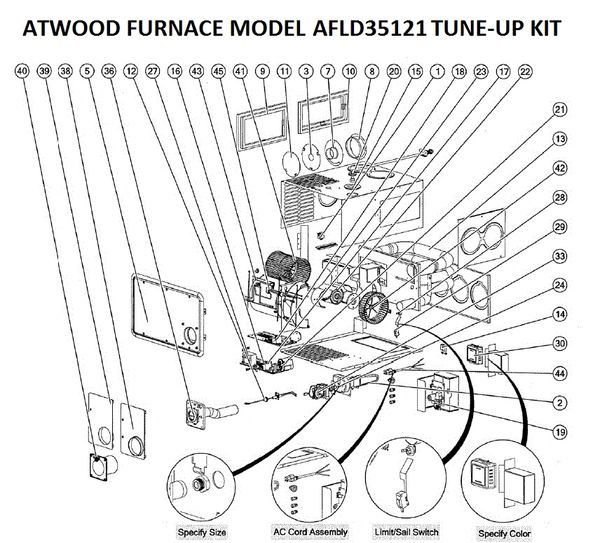

Atwood Furnace Model AFLD35121 Tune-Up Kit
Atwood Furnace Model AFLD35121 Tune-Up And Repair Kits
Kit #1 is only applicable to serial numbers before 72991127
Tune-Up Kit #1 Includes (individual part links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch (link): 31094 NLA (New P# Link: 31094-OS) (curved blade)
Kit #2 is only applicable to serial numbers after 72991127
Tune-Up Kit #2 Includes (individual part links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch Kit (link): 33082-OS (New P# 36165-OS) (flat blade)
*Not Shown* Blower Motor And Wheel Kit (link): 30720/30619/33126
Item #1 Circuit Breaker / On-Off Switch (link): 34015
Item #1 Circuit Breaker / On-Off Switch Kit (link): 32345
Item #2 Burner Head (link): 30209
Item #3 Not Applicable
Item #4 Not Applicable
Item #5 Not Applicable
Item #7 Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item #8 Duct Adapter, 4 Inch (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item #9 Side Adapter Plate Discharge Kit 30205
Item #10 Bottom Adapter Plate Discharge Kit (link): 30261
Item #11 Duct Cover Plate, 4 Inch (link): 31361
Item #12 Electrode (link): 35100
Item #12 Electrode (link): 35100-OS
Item #12 Electrode (link): 35100MC
Item #13 Heat Exchanger Kit 35707
Item #14 Casing Leg Kit 31244
Item #15 Gas Line Grommet (link): 35706
Item #16 Not Applicable
Item #17 Not Applicable
Item #19 OEM Ignition Board (link): 31501
Item# 19 After-Market Ignition Board (link): 35-535811-113
Item#19 After-Market Ignition Board 31501MC
Item# 19 Dinosaur Ignition Board (link): FAN50PP
Item #20 Manifold Extension Kit 35712
Item #21 Not Applicable
Item #22 Not Applicable
Item #23 Motor Kit (link): 30720
Item #23 Motor Kit (link): 30720-NBK 20897
Item #24 Orifice Stamp #50 (link): 31078
Item #27 Not Applicable
Item #28 Limit Switch, 190° (link): 31091
Item#28 Limit Switch (link): 31091-OS
Item#28 Limit Switch (link): 31091MC
Item #29 OEM Curved Blade Sail Switch (link): 31094 NLA SN 72991127 & Before (Replaced By P# Link: 31094-OS)
Item #29 Curved Blade Sail Switch (link): 31094-OS
Item #29 Curved Blade Sail Switch (link): 31094MC
Item #29 OEM Flat Blade Sail Switch (link): 33082 After SN 72991127 (New P# 36165)
Item #29 Flat Blade Sail Switch (link): 33082-OS (New P# 36165-OS)
Item #29 Flat Blade Sail Switch Only (link): 33063
Item #30 Black Heat Only Thermostat (link): 32300
Item #30 Brown Heat Only Thermostat (link): 38452 NLA
Item #30 White Heat Only Thermostat (link): 38453
Item #33 Gas Valve Kit (link): 31098
Item #37 LD Vent V3 30582
Item #37 LD Vent V4 31271
Item #37 LD Vent V4 LW 32299
Item #37 LD Vent V4 MW 30937
Item #37 LD Vent V3 30584
Item #38 Extension Vent Panel V3 30457
Item #40 Extension Vent Panel V4 30611
Item #41 Blower Wheel (link): 33126
Item #42 Combustion Wheel (link): 30619
Item #43 Wiring Harness Kit (link): 31114
Atwood AFLD35121 Mobile Service Training Manual 2007
Atwood HydroFlame AFLD35121 Service Manual 2004
Atwood HydroFlame AFLD35121 Service Manual 2007
Atwood AFLD35121 Time Delay, Sail Switch, And Limit Switch Important Info
