Atwood Furnace Model AFLD35131 Tune-Up Kit
$36.69
$28.97
Atwood Furnace Model AFLD35131 Tune-Up / Repair Kits
Kit #1 is only applicable to serial numbers before 72991127
Tune-Up Kit #1 Includes (individual parts links in blue):
IN-STOCK
Kit #2 is only applicable to serial numbers after 72991127
Tune-Up Kit #2 Includes (individual part links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch Kit (link): 33082-OS (New P# 36165-OS) (flat blade)
IN-STOCK
____________________________________________

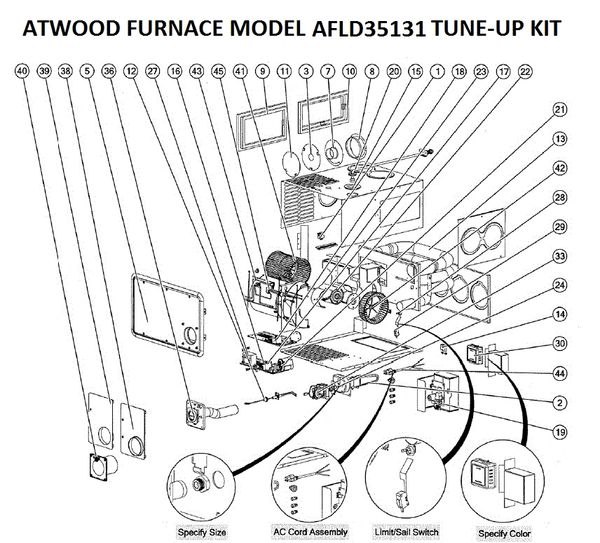

Atwood Furnace Model AFLD35131 Exploded Parts View Links
Click The Down Arrow To View The Complete Parts List
*Not Shown* Blower Motor And Wheel Kit (link): 30720/30619/33126
Item#1 Circuit Breaker / On-Off Switch (link): 34015
Item#1 Circuit Breaker / On-Off Switch (link): 32345
Item#2 Burner Assembly (link): 30209
Item#2 Burner Assembly (link): 30209-OS
Item#3 Not Applicable
Item#4 Arctic White Door 30487
Item#4 Black Door 30499
Item#5 Arctic White Door 31845
Item#5 Black Door 31861
Item#5 Arctic White Door 31845
Item#5 Black Door 31861
Item#7 Adapter Duct, 2 Inch (link): 36688
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#9 Side Adapter Discharge Plate 30205
Item#12 Electrode Kit (link): 35100
Item #12 Electrode (link): 35100-OS
Item #12 Electrode (link): 35100MC
Item#13 Heat Exchanger 35707
Item#14 Casing Leg Kit 31244
Item#15 Gas Line Grommet (link): 35706
Item#16 Not Applicable
Item#17 Not Applicable
Item#19 OEM Ignition Board 31501
Item#19 After-Market Ignition Board (link): 35-535811-113
Item#19 After-Market Ignition Board 31501MC
Item#19 Dinosaur Ignition Board (link): FAN50PP
Item#20 Manifold Extension Kit 35712
Item#21 Not Applicable
Item#22 Not Applicable
Item#23 Motor Kit (link): 30720
Item#23 Motor Kit (link): 30720-NBK 20897
Item#24 Orifice Stamp #50 (link): 31078
Item#27 Not Applicable
Item#28 Limit Switch (link): 31091
Item#28 Limit Switch (link): 31091-OS
Item#28 Limit Switch (link): 31091MC
Item#29 Curved Blade Sail Switch (link): 31094-OS
Item#29 Curved Blade Sail Switch (link): 31094MC
Item#29 OEM Flat Sail Switch Kit (link): 33082 After SN 72991127 (New P# 36165)
Item #29 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)
Item #29 Flat Blade Sail Switch Only (link): 33063
Item#30 Black Thermostat (link): 32300
Item#30 Brown Thermostat (link): 38452 NLA
Item#30 White Thermostat (link): 38453
Item#33 Gas Valve (link): 31098
Item#37 Door Vent Kit 31777
Item#39 Not Applicable
Item#40 Not Applicable
Item#41 Blower Wheel Kit (link): 33126
Item#42 Combustion Wheel Kit (link): 30619
Item#43 Wiring Harness Kit (link): 31114
Item#42 Combustion Wheel Kit (link): 30619
Item#43 Wiring Harness Kit (link): 31114
_________________________________
Available Downloads:
Atwood AFLD35131 Mobile Service Training Manual 2007
Atwood HydroFlame AFLD35131 Service Manual 2004
Atwood HydroFlame AFLD35131 Service Manual 2007
Atwood AFLD35131 Time Delay, Sail Switch, And Limit Switch Important Info
