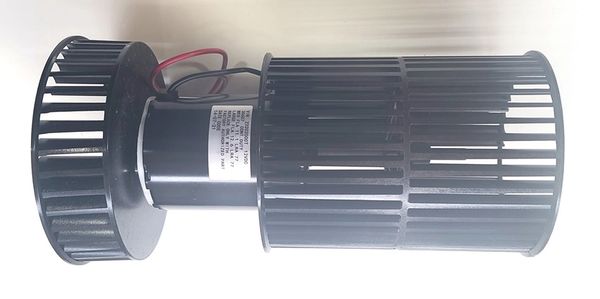

Atwood Furnace Model AFLD40111 Motor And Wheel Kit

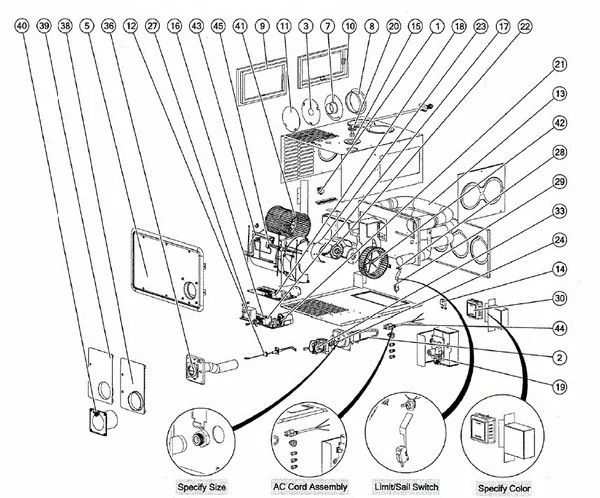

Atwood Furnace Model AFLD40111 Exploded Parts View Links

Click The Down Arrow To View The Complete Part List

Item #1 20 Amp Circuit Breaker (link): 32345

Item #2 Burner Head (link): 30209

Item #5 Arctic White Door Kit 30487 (Non Stocked Item)

Item #5 Black Door Kit 31861 (Non Stocked Item)

Item #5 Arctic White Access Door Kit 31845 (Non Stocked Item)

Item #5 Black Access Door Kit 31861 (Non Stocked Item)

Item #7 2 Inch Duct Adapter (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item #8 4 Inch Duct Adapter (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

Item #9 Side Adapter Plate 30205 (Non Stocked Item)

Item #10 Bottom Adapter Plate (link): 30261

Item #11 4 Inch Duct Cover Plate (link): 31361

Item #12 Electrode (link): 35100

Item #12 Electrode (link): 35100-OS

Item #12 Electrode (link): 35100MC

Item #13 Heat Exchanger 35707 (Non Stocked Item)

Item #14 Casing Leg 31244 (Non Stocked Item)

Item #15 Gas Line Grommet (link): 35706

Item #18 DSI Board Bracket 30627 (Non Stocked Item)

Item #19 OEM Ignition Board (link): 31501

Item #19 After-Market Ignition Board (link): 35-535811-113

Item #19 After-Market Ignition Board (link): 31501MC

Item #19 After-Market Dinosaur Ignition Board (link): FAN50PP

Item #23 OEM Blower Motor (link): 30720

Item #23 After-Market Blower Motor (link): 30720-NBK 20897

Item #24 Orifice (#48 LP) (link): 30887

Item #28 Limit Switch (link): 31091

Item #28 Limit Switch (link): 31091MC

Item#28 Limit Switch (link): 31091-OS

Item #29 OEM Curved Blade Sail Switch (link): 31094 NLA (SN 72991127 & Prior) (Replaced by links: 31094-OS or 31094MC)

Item #29 OEM Flat Blade Sail Switch w/ Bracket (link): 33082 (After SN 72991127) (New P# 36165)

Item #29 OEM Flat Blade Sail Switch w/o Bracket (link): 33063 (After SN 72991127)

Item#29 After-Market Sail Switch w/ Bracket (link): 33082-OS (After SN 72991127) (New P# 36165-OS)

Item #30 Black Thermostat (link): 32300

Item #30 White Thermostat (link): 38453

Item #30 Brown Thermostat (link): 38452 NLA

Item #33 Gas Valve (link): 31098

Item #40 Door Vent Kit 31809 (Non Stocked Item)

Item #41 Blower Wheel Kit (link): 33126

Item #42 Combustion Wheel (link): 30619

Item #45 Wiring Harness (link): 31114
