Atwood Furnace Model AFMD16141 Tune-Up Kit
$37.98
$28.71
Note: Older AFMD16141 furnaces used a curved blade sail switch (31093), newer furnaces use the flat style blade sail switch (33063). As there is not an accurate SN break you must determine which sail switch is applicable to your furnace as this will determine which kit you will need to order.
Tune-Up Kit #1 Includes (links in blue):
Item #10 Electrode Assembly (link): 35100-OS
Item #19 Limit Switch, 190° (link): 31091-OS
IN-STOCK
Tune-Up Kit #2 Includes (links in blue):
Item #10 Electrode Assembly (link): 35100-OS
Item #19 Limit Switch, 190° (link): 31091-OS
Item #20 Flat Blade Sail Switch Only (link): 33063
IN-STOCK
Tune-Up Kit #3 Includes (links in blue):
Item #10 Electrode Assembly (link): 35100-OS
Item #19 Limit Switch, 190° (link): 31091-OS
Item #20 Flat Blade Sail Switch Upgrade Kit (link): 33081
IN-STOCK
________________________________________

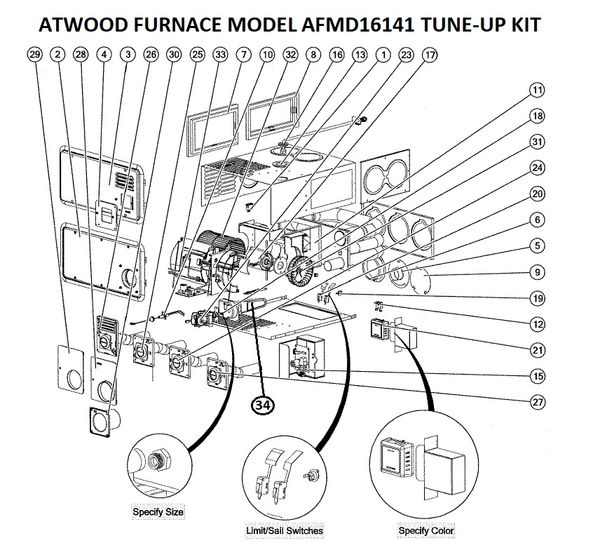

Click The Down Arrow To View The Complete Exploded Parts View List
Atwood Furnace Model AFMD16141 Exploded Parts View Links
*Not Shown* Blower Motor And Wheel Kit (link): 30730/33128/33126
Item#1 7 Amp Circuit Breaker (link): 30322
Item#2 Arctic White Door Kit 31863
Item#2 Black Door Kit 31874
Item#3 Arctic White Door Kit 30539
Item#3 Black Door Kit 30637
Item#4 Vent Adapter Door Kit 31876
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#6 4 Inch Adapter Duct (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#7 Adapter Plate Side Discharge Kit 30205
Item#11 Heat Exchanger 35710
Item#12 Leg Casing Kit 31244
Item#13 Gas Line Grommet (link): 35706
Item#15 OEM Ignition Board (link): 31501
Item#15 After-Market Ignition Board (link): 35-535811-113
Item#15 After-Market Ignition Board (link): 31501MC
Item#15 After-Market Dinosaur Ignition Board (link): FAN50PP
Item#16 Manifold Extension Kit 35712
*Not Shown* Manifold Inlet Kit 32349
Item#17 Motor Kit (link): 30730
Item#18 Orifice Stamp #56 (link): 31083
Item#19 Limit Switch (link): 31091
Item#20 Curved Blade Sail Switch (link): 31093
Item#20 Curved Blade Sail Switch (link): 31093-OS
Item#20 Curved Blade Sail Switch (link): 31093MC
Item#20 Flat Blade Sail Switch Only (link): 33063
Item#20 Flat Blade Sail Switch Kit (link): 33081 (New P# 36160)
Item#21 Heat Only Black Thermostat (link): 32300
Item#21 Heat Only Brown Thermostat (link): 38452 NLA
Item#21 Heat Only White Thermostat (link): 38453
Item#23 Gas Valve Top (link): 31098
Item#24 Door Vent Kit 31722
Item#31 Combustion Wheel Kit (link): 33128
Item#32 Blower Wheel Kit (link): 33126
Item#33 Wiring Harness (link): 31114
Item#34 Burner Assembly (link): 30268
Item#34 Burner Assembly (link): 30268-OS
_______________________________
Available Downloads:
Atwood AFMD16141 Furnace-Installation-Manual-for-Medium-Furnaces
Atwood AFMD16141 Mobile Service Training Manual 2015
