Atwood Furnace Model AFMD25131 Tune-Up Kit
$36.69
$28.97
Atwood Furnace Model AFMD25131 Tune-Up And Repair Kits
Kit #1 Is Only Applicable To Serial Numbers Before 72489156
Tune-Up Kit #1 Includes (individual part links in blue):
Kit #2 Is Only Applicable To Serial Numbers After 72489156
Tune-Up Kit #2 Includes (individual part links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch (link): 33082-OS (New P# 36165-OS) (flat blade)
IN-STOCK
_____________________________________________

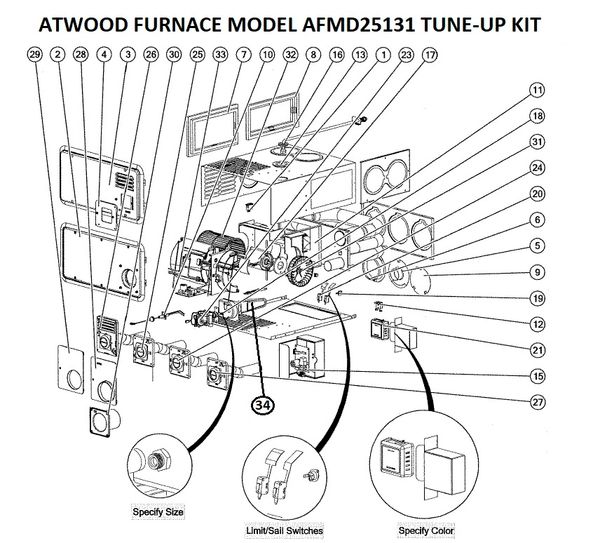

Click The Down Arrow To View Complete Exploded Parts View List
Atwood Furnace Model AFMD25131 Exploded Parts View Links
*Not Shown* Blower Motor / Combustion Wheel / Blower Wheel Kits (link): 30722/33128/33128
Item#1 10 Amp Circuit Breaker (link): 30335
Item#2 Arctic White Door Kit 31863
Item#2 Black Door Kit 31874
Item#3 Arctic White Door Kit 30539
Item#3 Black Door Kit 30637
Item#4 Vent Adapter Door Kit 31876
Item#5 2 Inch Adapter Duct (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#6 4 Inch Adapter Duct (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#7 Adapter Plate Side Discharge Kit 30205
Item#8 Bottom Plate Adapter Assembly Kit (link): 30261
Item#9 4 Inch Duct Cover Plate (link): 31361
Item#10 Electrode (link): 35100
Item#11 Heat Exchanger 35710
Item#12 Leg Casing Kit 31244
Item#13 Gas Line Grommet (link): 35706
Item#15 OEM Ignition Board (link): 31501
Item#15 After-Market Ignition Board (link): 35-535811-113
Item#15 After-Market Ignition Board (link): 30151MC
Item#15 Dinosaur Ignition Board (link): FAN50PP
Item#16 Manifold Extension Kit 35712
*Not Shown* Manifold Inlet Kit 32349
Item#18 1.45MM Orifice (link): 30845
Item#19 Limit Switch (link): 31091
Item#19 Limit Switch (link): 31091-OS
Item#19 Limit Switch (link): 31091MC
Item#21 Heat Only Black Thermostat (link): 32300
Item#21 Heat Only Brown Thermostat (link): 38452 NLA
Item#21 Heat Only White Thermostat (link): 38453
Item#23 Gas Valve Top (link): 31098
Item#24 Door Vent Kit 31809
Item#31 Combustion Wheel Kit (link): 33128
Item#32 Blower Wheel Kit (link): 33126
Item#33 Wiring Harness (link): 31114
Item#34 Burner Assembly (link): 30268
Item#34 Burner Assembly (link): 30268-OS
________________________________
Available Downloads:
Atwood AFMD25131 Furnace-Installation-Manual-for-Medium-Furnaces
Atwood AFMD25131 Mobile Service Training Manual 2015
