Atwood / HydroFlame Furnace Model 7912-II Blower Motor And Wheel Kit
$141.70
$119.48
Atwood / HydroFlame Furnace Model 7912-II Blower Motor / Blower Wheel / Combustion Wheel Kit
IN-STOCK
Kit #1 Contents (links in blue):
Item#23 After-Market Blower Motor (link): 31384-NBK 20273K (Old P# 31036-NBK 20273K)
Item#27 Combustion Wheel (link): 33124
Item#22 Blower Wheel (link): 33286
Kit #2 Contents (links in blue):
Item#23 After-Market Blower Motor (link): 31384MC (Old P# 31036MC)
Item#27 Combustion Wheel (link): 33124
Item#22 Blower Wheel (link): 33286
Kit #3 Contents (links in blue):
Item#23 OEM Blower Motor (link): 31384 (Old P# 31036)
Item#27 Combustion Wheel (link): 33124
Item#22 Blower Wheel (link): 33286
_________________________________
Click The Down Arrow To View Complete Parts List

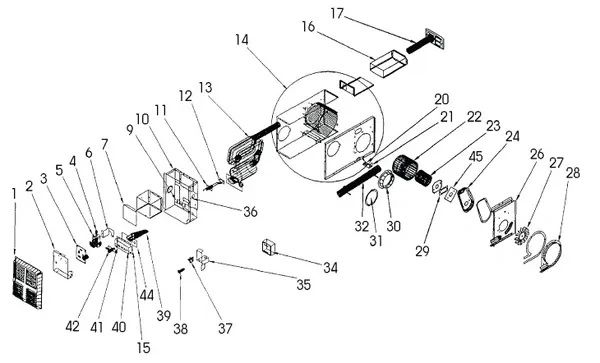

ATWOOD FURNACE 7912-II EXPLODED PARTS VIEW LINKS
Item#1 Door Assy. 37520 NLA
Item#2 Ignition Module Mounting Bracket (link): 37951 (After S/N 1165562)
Item#3 OEM Ignition Module (link): 31501 (33488)
Item#3 After-Market Ignition Module (link): 31501MC (33488)
Item#3 After-Market Ignition Module (link): 35-535811-113
Item#3 Dinosaur Electronics Ignition Module (link): FAN50PP
Item#11 Single Sense Electrode (link): 37517 NLA
Item#11 Dual Sense Electrode (link): 36998
Item#15 Burner Plate Gasket (link): 35890 NLA
Item#38 Circuit Breaker (link): 30320 (Replaces P# 34007)
Item#39 Burner Assembly (link): 30268-OS (Replaced P# 36043-OS)
Item#32 Burner Air Tube (link): 35892 NLA
*Not Shown* Door Latch (link): 37912
Item#32 Burner Air Tube (link): 35892 NLA
*Not Shown* Door Latch (link): 37912
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#24 Motor Mount Assembly 35879 NLA
*Not Shown* Wiring Harness Kit (link): 30230 NLA
Item#42 Manifold (link): 37391 NLA
Item#23 OEM Blower Motor (link): 31384 (Replaced P# Link: 31036)
Item#42 Manifold (link): 37391 NLA
Item#23 OEM Blower Motor (link): 31384 (Replaced P# Link: 31036)
Item#23 After-Market Blower Motor (link): 31384-NBK20273K
Item#23 After-Market Blower Motor (link): 31384MC (Replaced P# Link: 31036MC)
Item#41 Orifice 36218 NLA (Before S/N 0651156 NLA)
Item#41 Orifice 36218 NLA (Before S/N 0651156 NLA)
Item#41 Orifice 37389 NLA (After S/N 0651155 NLA)
Item#34 Thermostat, Heat Only, Black (link): 32300
Item#34 Thermostat, Heat Only, Brown (link): 38452 NLA
Item#34 Thermostat, Heat Only, White (link): 38453
Item#16 & 17 Vent Kit, 4 Inch (link): 35955 NLA
Item#16 & 17 Vent Kit, 8 Inch (link): 35956 NLA
Item#16 & 17 Vent Kit, 12 Inch (link): 35957 NLA
Item#27 Combustion Wheel Kit (link): 33124
Item#34 Thermostat, Heat Only, Brown (link): 38452 NLA
Item#34 Thermostat, Heat Only, White (link): 38453
Item#16 & 17 Vent Kit, 4 Inch (link): 35955 NLA
Item#16 & 17 Vent Kit, 8 Inch (link): 35956 NLA
Item#16 & 17 Vent Kit, 12 Inch (link): 35957 NLA
Item#27 Combustion Wheel Kit (link): 33124
*Not Shown* Ignitor Lead, 7 Inch (link): 34116
____________________________
Available Downloads:
Atwood Furnace Series 7912-II Users Manual
7912-II Technical Installation Manual
HydroFlame Furnace Exploded Views And Parts List
