• Atwood / HydroFlame Furnace Model 7920-II Tune-Up Kit

    $63.38 $42.65

    THIS KIT IS NOT APPLICABLE TO A 7920 or 7920-I, ONLY TO A 7920-II*

    Please NoteElectrode 31380 (single sense) has become no longer available for this model and currently there is no replacement.

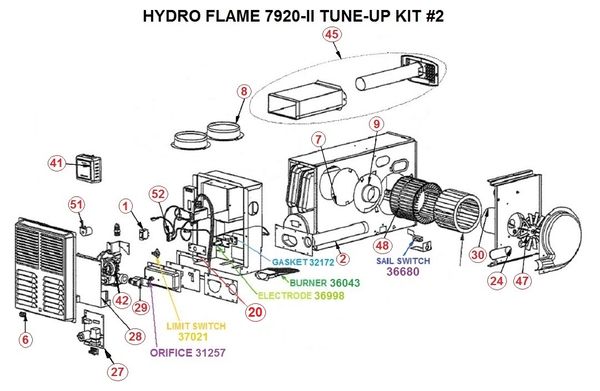

    Tune-Up Kit (links in blue):

    Item#11 Dual Sense Electrode (link): 36998

    Item#12 Dual Sense Electrode Gasket 32172-OS (Replaced P# 32172 NLA)

    Item#36 Limit Switch, 170° (link): 37021

    Item#20 Sail Switch (link): 31377 (Replaced P# Link: 36680)

    Item#41 Orifice (link): 30789 (Replaced P# Link: 31265)

    IN-STOCK

    ____________________________________________________

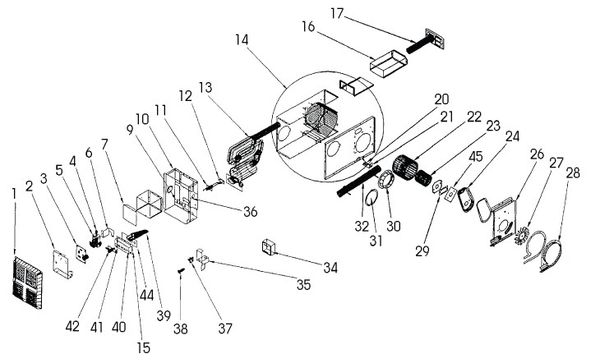

    Click The Down Arrow To View The Complete Parts List

    ADDITIONAL ATWOOD FURNACE 7920-II AVAILABLE PARTS LINKS

    Item#1 Door Assy. 37520 NLA

    *Not Shown* Door Latch (link): 37912

    Item#2 Ignition Module Mounting Bracket (link): 37951 (After S/N 1165562)

    Item#3 OEM Ignition Module (link): 31501 (33488)

    Item#3 After-Market Ignition Module (link): 31501MC (33488)

    Item#3 After-Market Ignition Module (link): 35-535811-113

    Item#3 Dinosaur Electronics Ignition Module (link): FAN50PP

    Item#5 Gas Valve 31150 (Replaces P# Link: 38604)

    *Not Shown* Replacement Coil (link): 31000 NLA

    Item#11 Single Sense Electrode (link): 37517 NLA

    Item#12 Single Sense Electrode Gasket 37100MC (Replaced P# 37100 NLA)

    Item#11 Dual Sense Electrode (link): 36998

    Item#12 Dual Sense Electrode Gasket 32172-OS (Replaced P# 32172 NLA)

    *Not Shown* Ignitor Lead, 7 Inch (link): 34116

    Item#15 Burner Plate Gasket (link): 35890 NLA

    Item#16 & 17 Vent Kit, 4 Inch (link): 35955 NLA

    Item#16 & 17 Vent Kit, 8 Inch (link): 35956 NLA

    Item#16 & 17 Vent Kit, 12 Inch (link): 35957 NLA

    Item#20 Sail Switch (link): 31377 (Replaced P# Link: 36680)

    Item#22 Blower Wheel & Clamp Kit (link): 33286

    Item#23 OEM Blower Motor (link): 31384 (Replaced P# Link: 31036)

    Item#23 After-Market Blower Motor (link): 31384-NBK20273K

    Item#23 After-Market Blower Motor (link): 31384MC (Replaced P# Link: 31036MC)

    Item#24 Motor Mount Assembly 35879 NLA

    Item#27 Combustion Wheel Kit (link): 33124

    Item#30 Duct Adapter, 4 Inch (link): 31474

    *Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

    *Not Shown* Duct Adapter, 2 Inch (link): 36688

    *Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

    Item#31 Duct Cover, 4 Inch (link): 31361

    Item#32 Burner Air Tube (link): 35892 NLA

    Item#34 Thermostat, Heat Only, Black (link): 32300

    Item#34 Thermostat, Heat Only, Brown (link): 38452 NLA

    Item#34 Thermostat, Heat Only, White (link): 38453

    Item#36 Limit Switch, 170° (link): 37021

    Item#36 Limit Switch, 170° (link): 37021MC

    Item#38 Circuit Breaker (link): 30320 (Replaces P# 34007)

    Item#39 Burner Assembly (link): 30268 (Replaced P# Link: 36043)

    Item#39 Burner Assembly (link): 30268-OS (Replaced P# 36043-OS)

    Item#41 Orifice (link): 30789 (Replaced P# Link: 31265)

    *Not Shown* On-Off Switch (link): 31092 (Replaced P# Link: 36121)

    *Not Shown* Wiring Harness Kit (link): 30230 NLA

    __________________________________________________
