Atwood / HydroFlame Furnace Model 8940-DC-I Tune-Up Kit
Atwood Furnace 8940-I-DC Tune-Up / Repair Kit
Tune-Up Kit Includes (links in blue):
Item#52 Limit Switch (link): 35132
Item#51 Dual Sense Electrode (link): 36997
*Not Shown* Electrode Gasket (link): 32172-OS (Replaced P# Link: 32172)
Item#36 Sail Switch (link): 31377 (Replaced P# Link: 36680)
IN-STOCK
______________________________________________

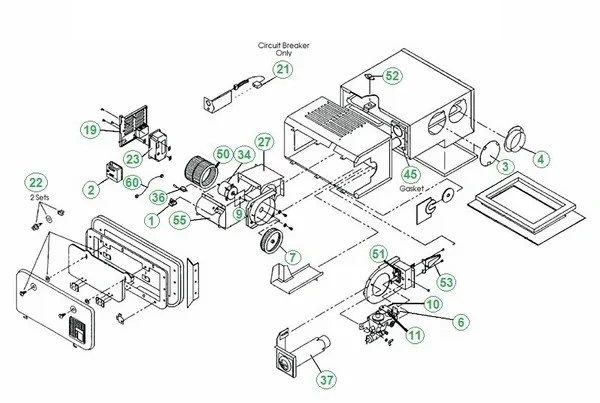

ATWOOD FURNACE 8940-DC-I EXPLODED PARTS VIEW LINKS
*Not Shown* Blower Motor / Combustion Wheel / Blower Wheel Kit (link): 37357+33128+34099
Item#1 12VDC Klixon Time Delay Relay (link): 48000 (Replaces P# 31017)
Item#2 Analog Black Thermostat (link): 32300
Item#2 Analog Brown Thermostat (link): 38452 NLA
Item#2 Analog White Thermostat (link): 38453
Item#3 Duct Cover Plate 31361
Item#4 Adapter Duct, 4 Inch 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Click The Down Arrow To View The Complete Parts List
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#6 Burner Orifice (link): 31077 (Replaced P# Link: 34004)
Item#7 Combustion Air Wheel (link): 33128
Item#9 Motor Gasket (link): 37713 (Replaces P# Link: 32841)
Item#10 Gas Valve, DC Voltage (link): 31155 NLA (Replaces P# 38607)
*Not Shown* Gas Valve Replacement Coil (link): 31000 NLA
Item#19 DSI Board Mount Bracket (link): 34541
Item#21 Switch / Breaker Combination (link) 33782
Item#22 Screw-In Door Latch (link): 33847
Item#23 OEM Ignition Board (link): 31501 (33488)
Item#23 After-Market Ignition Module (link): 31501MC (33488)
Item#23 Fenwal Ignition Board (link): 35-535911-113
Item#27 Inside Blower Housing 33984 NLA
Item#34 OEM DC Voltage Blower Motor Only (link): 37698 NLA
Item#34 OEM DC Voltage Blower Motor Kit (link): 37357
Item#34 After-Market DC Voltage Blower Motor Only (link): 37698MC
Item#34 After-Market DC Voltage Blower Motor Kit (link): 37357MC
Item#35 OEM Motor Mount Bracket (link): 37360
Item#35 After-Market Motor Mount Bracket (link): 37360MC
Item#36 Sail Switch (link): 31377 (Replaced P# Link: 36680)
Item#37 Draft Cap (link): 38141 NLA (Replaces P# 36894)
Item#45 OEM Exhaust Wall Gasket (link): 37956 NLA
Item#45 After-Market Exhaust Wall Gasket (link): 37956PDX
Item#50 Blower Wheel (link): 34099
Item#51 Dual Sense Electrode (link): 36997
*Not Shown* Electrode Gasket (link): 32172-OS (Replaced P# Link: 32172)
Item#52 Limit Switch (link): 35132
Item#53 Burner Assembly (link): 30209 (Replaced P# Link: 35491)
Item#55 Blower Assembly (link): 34014 NLA
Item#60 Ignition Lead (link): 34571 NLA
_______________________________________
Atwood 8940-DC-I Mobile Service Training Manual 2007
Atwood HydroFlame 8940-DC-I Service Manual 2004
Atwood HydroFlame 8940-DC-I Service Manual 2007
Atwood 8940-DC-I Time Delay, Sail Switch, And Limit Switch Important Info
