Atwood / HydroFlame Furnace Model 8516-I Blower Motor And Wheel Kit

Atwood / HydroFlame Furnace Model 8516-I Blower Motor / Combustion Wheel

IN-STOCK

Note: blower wheel 32776 is NLA.

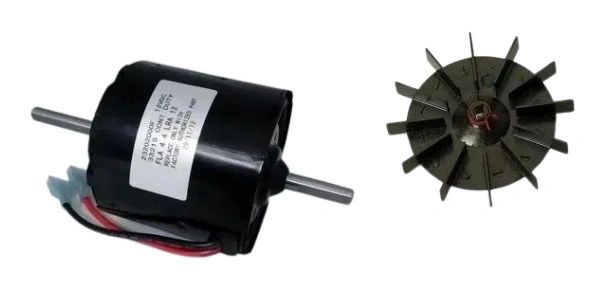

Kit Contents (links in blue):

OEM Blower Motor 30131 (Old P# 33129)

OEM Combustion Wheel 33124

____________________________________

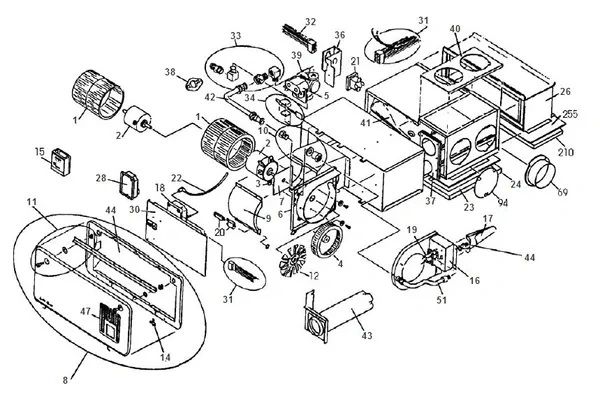

Click The Down Arrow To View The Complete Parts List

ADDITIONAL ATWOOD FURNACE 8516-I AVAILABLE PARTS LINKS

Item#1 Blower Wheel 32776 NLA

Item#2 Blower Motor (link): 30131 (Replaced P# 33219)

Item#3 OEM Motor Bracket (link): 37360 (Replaced P# 32870)

Item#3 After-Market Motor Bracket (link): 37360MC (Replaced P# 32870MC)

Item#12 Combustion Wheel (link): 33124

Item#5 Replacement Valve Coil (link): 31000 NLA

Item#7 Motor Gasket (link): 37713 (Replaced P# Link: 32841 NLA)

Item#15 Thermostat, Heat Only, Black (link): 32300

Item#15 Thermostat, Heat Only, Brown (link): 38452 NLA

Item#15 Thermostat, Heat Only, White (link): 38453

Item#17 Burner Assembly 32811 NLA

Item#18 OEM Ignition Module (link): 31501 (33488)

Item#18 After-Market Ignition Module (link): 31501MC (33488)

Item#19 Electrode Kit (link): 33625 NLA (Replaced P# Link: 36999 NLA)

Item#19 Electrode (link): 36999MC

*Not Shown* OEM Electrode Gasket (link): 32172 NLA

*Not Shown* After-Market Electrode Gasket (link): 32172-OS

Item#20 Circuit Breaker (link): 33780 (Replaced P# 31028)

Item#21 Klixon Time Delay Relay (link): 48000 (Replaced P# 31017 NLA)

Item#22 High Tension Lead Kit (link): 34571

Item#34 Sail Switch (link): 33697 (Replaces P# 35282)

Item#37 OEM Exhaust Wall Gasket (link): 37956 NLA (Replaced P# 32926)

Item#37 After-Market Exhaust Wall Gasket (link): 37956PDX

Item#38 Limit Switch, 190° (link): 31025 NLA →(Replaced By Limit Switch Only P# Link: 32927FD)

Item#39 Gas Valve (link): 31155 NLA (Replaced P# 38607 NLA)

Item#59 Burner Orifice #56 (link): 31083 (Replaced P# Link: 31257)

Item#69 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

*Not Shown* Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#94 Duct Cover, 4 Inch (link): 31361
