Dometic Furnace Model DFLD35111 Motor And Wheel Kit

Dometic Furnace DFLD35111 Blower Motor / Combustion Wheel / Blower Wheel Kit

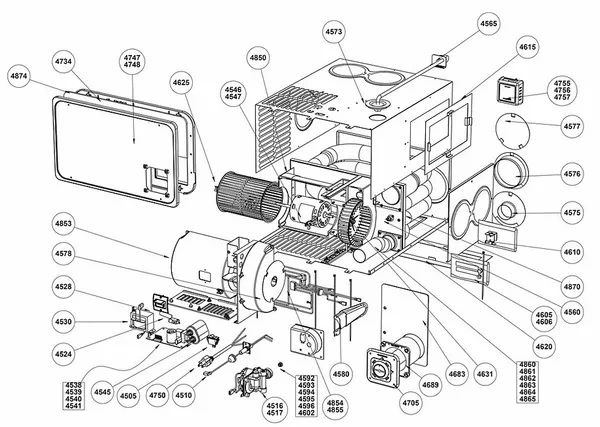

Dometic Furnace DFLD35111 Exploded Parts View Links

Click The Down Arrow To View The Complete Parts List

Item #4505 20 Amp Lit Circuit Breaker (link): 32345

Item #4505 20 Amp Non-Lit Circuit Breaker (link): 34015

Item #4510 Electrode (link): 35100

Item #4510 Electrode (link): 35100-OS

Item #4510 Electrode (link): 35100MC

Item #4516 Gas Valve (link): 31098

Item #4524 OEM Curved Sail Switch (link): 31094 NLA (Replaced By P# 31094-OS)(Serial # 7299127 & Below)

Item #4524 Flat Blade Sail Switch Kit 33082 (New P# 36165)(Serial # After 7299127)

Item #4524 Flat Blade Sail Switch Kit 33082-OS (New P# 36165-OS)(Serial # After 7299127)

Item #4524 Flat Blade Sail Switch Only (link): 33063 (Serial # After 7299127)

Item #4528 Sail Switch Mount (link): 33053

Item #4539 DSI Board Bracket 30627 (Non Stocked Item)

Item #4541 OEM Ignition Board (link): 31501

Item #4541 After-Market Ignition Module (link): 35-535811-113

Item #4541 After-Market Ignition Board (link): 31501MC

Item #4541 Dinosaur Electronics Ignition Module (link): FAN50PP

Item #4547 OEM Blower Motor (link): 30720

Item #4547 After-Market Blower Motor (link): 30720-NBK 20897

Item #4560 Limit Switch (link): 31091

Item #4560 Limit Switch, 190° (link): 31091-OS

Item #4560 Limit Switch, 190° (link): 31091MC

Item #4573 Gas Line Grommet (link): 35706

Item #4575 2 Inch Duct Adapter (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item #4576 4 Inch Duct Adapter (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

Item #4577 4 Inch Duct Cover (link): 31361

Item #4578 Air Restrictor 31089 (Non Stocked Item)

Item #4580 Burner Head (link): 30209

Item #4595 Orifice (Stamp #50 LP) (link): 31078

Item #4610 Casing Leg 31244 (Non Stocked Item)

Item #4615 Vertical Bottom Adapter Plate 30205 (Non Stocked Item)

Item #4620 Horizontal Adapter Plate (link): 30261

Item #4625 Blower Wheel w/ Clamp (link): 33126

Item #4631 Combustion Air Wheel w/ Clamp (link): 30619

Item #4705 Door Vent Assembly (link): 33050

Item #4734 Door Bezel 32612 (Non Stocked Item)

Item #4747 Black #44 Door 33058 (Non Stocked Item)

Item #4748 White #34 Door 33059 (Non Stocked Item)

Item #4755 Black Thermostat (link): 32300

Item #4756 Brown Thermostat (link): 38452 NLA

Item #4757 White Thermostat (link): 38453

Item #4850 Blower Housing (link): 30702

Item #4853 Front Blower Housing 32448 (Non Stocked Item)

Item #4855 Wiring Harness (link): 33060

Item #4863 Exhaust Adapter 33171 (Non Stocked Item)

Item #4870 Heat Exchanger 33302 (Non Stocked Item)

Item #4874 Door Gasket 33322 (Non Stocked Item)
