Dometic Furnace Model DFLD40121 Motor And Wheel Kit

$154.17 $128.40
Required
This item is out of stock

Dometic Furnace Model DFLD40121 Blower Motor And Wheel Kits

Kit #1 Includes (links in blue):

Item #4547 After-Market Blower Motor (link): 30720-NBK 20897
Item #4631 OEM Combustion Air Wheel w/ Clamp (link): 30619
Item #4625 OEM Blower Wheel w/ Clamp (link): 33126


Kit #2 Includes (links in blue):

Item #4547 OEM Blower Motor (link): 30720
Item #4631 OEM Combustion Air Wheel w/ Clamp (link): 30619
Item #4625 OEM Blower Wheel w/ Clamp (link): 33126

_________________________________

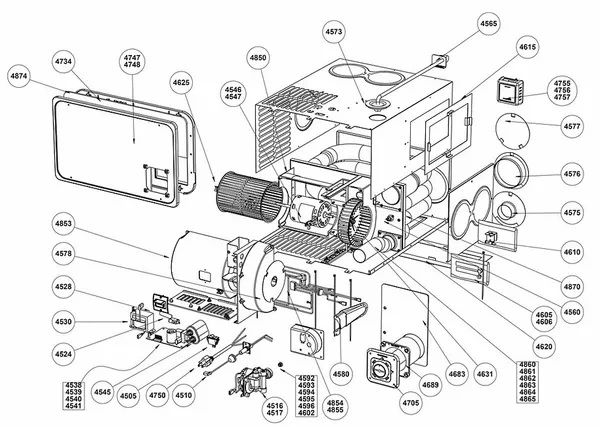

Dometic Furnace DFLD40121 Exploded Parts View Links


Click The Down Arrow To View The Complete Parts List


Item #4505 20 Amp Lit Circuit Breaker (link): 32345


Item #4505 20 Amp Non-Lit Circuit Breaker (link): 34015


Item #4510
Electrode (link): 35100


Item #4510 Electrode (link): 35100-OS


Item #4510 Electrode (link): 35100MC


Item #4516
Gas Valve (link): 31098


Item #4524
OEM Curved Sail Switch (link): 31094 NLA (Replaced By P# 31094-OS)(Serial # 7299127 & Below)


Item #4524 Flat Blade Sail Switch Kit 33082 (New P# 36165)(Serial # After 7299127)


Item #4524 Flat Blade Sail Switch Kit 33082-OS (New P# 36165-OS)(Serial # After 7299127)


Item #4524 Flat Blade Sail Switch Only (link): 33063 (Serial # After 7299127)


Item #4528
Sail Switch Mount (link): 33053


Item #4539 DSI Board Bracket 30627 (Non Stocked Item)


Item #4541 OEM Ignition Board (link): 31501


Item #4541 After-Market Ignition Module (link): 35-535811-113


Item #4541
After-Market Ignition Board (link): 31501MC


Item #4541 Dinosaur Electronics Ignition Module (link): FAN50PP


Item #4547
OEM Blower Motor (link): 30720


Item #4547 After-Market Blower Motor (link):
 30720-NBK 20897


Item #4560 Limit Switch (link): 31091


Item #4560 Limit Switch, 190° (link): 31091-OS


Item #4560 Limit Switch, 190° (link): 31091MC


Item #4565 Manifold Extension 35712 (Non Stocked Item)


Item #4573 Gas Line Grommet (link): 35706


Item #4575
2 Inch Duct Adapter (link): 36688


*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25


Item #4576 4 Inch Duct Adapter (link): 31474


*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25


Item #4577
4 Inch Duct Cover (link): 31361


Item #4578 Air Restrictor 31089 (Non Stocked Item)


 Item #4580 Burner Head (link): 30209


Item#4580 Burner Assembly (link): 30209-OS


Item #4594
Orifice (#48 LP) (link): 30887


Item #4610 Casing Leg 31244 (Non Stocked Item)


Item #4615 Vertical Bottom Adapter Plate 30205 (Non Stocked Item)


Item #4620 Horizontal Adapter Plate (link): 30261


Item #4625
Blower Wheel w/ Clamp (link): 33126


Item #4631
Combustion Air Wheel w/ Clamp (link): 30619


Item #4683 Vent Cover Panel 31368 (Non Stocked Item)


Item #4689 Vent Panel Extension 33055 (Non Stocked Item)


Item #4705 Door Vent Assembly (link): 33050


Item #4755 Black Thermostat (link): 32300


Item #4756
Brown Thermostat (link): 38452 NLA


Item #4757
White Thermostat (link): 38453


Item #4850 Blower Housing (link): 30702


Item #4853 Front Blower Housing 32448 (Non Stocked Item)


Item #4855 Wiring Harness (link): 33060


Item #4865 Exhaust Adapter 33173 (Non Stocked Item)


Item #4870 Heat Exchanger 33302 (Non Stocked Item)
