Dometic Furnace DFMD25111 Blower Motor / Combustion Wheel / Blower Wheel Kits
After-Market Motor & Wheel Kit (#1) Includes (links in blue):
Item #4549 After-Market Blower Motor (link): 30722MC
Item #4630 OEM Combustion Wheel w/ Clamp (link): 33128
Item #4625 OEM Blower Wheel w/ Clamp (link): 33126
IN-STOCK

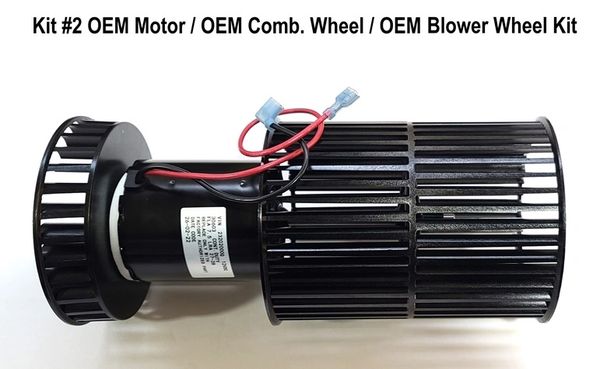

OEM Motor & Wheel Kit (#2) Includes (links in blue):
Item #4549 OEM Blower Motor (link): 30722
Item #4630 OEM Combustion Wheel w/ Clamp (link): 33128
Item #4625 Blower Wheel w/ Clamp (link): 33126
IN-STOCK
_______________________________________

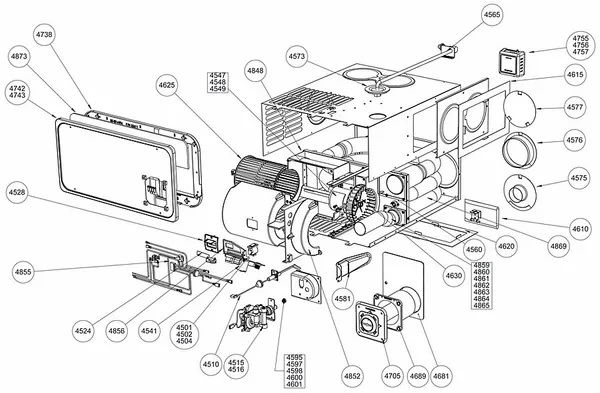

Dometic Furnace Model DFMD25111 Exploded Parts View
Click The Down Arrow To View The Complete Parts List
Item #4501 10 Amp Circuit Breaker (link): 30335
Item #4510 Electrode (link): 35100
Item #4510 Electrode (link): 35100-OS
Item #4510 Electrode (link): 35100MC
Item #4516 Gas Valve (link): 31098
Item #4524 OEM Curved Blade Sail Switch (link): 31094 NLA (SN 72489156 & Prior)(Replaced By P# Link: 31094-OS)
Item #4524 Curved Blade Sail Switch (link): 31094-OS (Serial Number 72489156 & Before)
Item #4524 Curved Blade Sail Switch (link): 31094MC (Serial Number 72489156 & Before)
Item #4524 OEM Flat Blade Sail Switch Kit (link): 33082 (After SN 72489156) (New P# 36165)
Item #4524 Flat Blade Sail Switch Kit (link): 33082-OS (After SN 72489156) (New P# 36165-OS)
Item #4524 Flat Blade Sail Switch Only (link): 33063
Item #4528 Sail Switch Mount (link): 33053
Item #4541 OEM Ignition Board (link): 31501
Item #4541 After-Market Ignition Board (link): 31501MC
Item #4541 Dinosaur Electronics Ignition Module (link): FAN50PP
Item #4549 OEM Blower Motor (link): 30722
Item #4549 After-Market Blower Motor (link): 30722MC
Item #4560 Limit Switch (link): 31091
Item #4560 Limit Switch, 190° (link): 31091-OS
Item #4560 Limit Switch, 190° (link): 31091MC
Item #4573 Gas Line Grommet (link): 35706
Item #4575 2 Inch Duct Adapter (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item #4576 4 Inch Duct Adapter (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item# 4577 4 Inch Duct Cover Plate (link): 31361
Item #4581 Burner Assembly (link): 30268
Item #4581 Burner Assembly (link): 30268-OS
Item #4601 Orifice (Stamp # 1.45 MM) (link): 30845
Item #4610 Casing Leg 31244 (Non Stocked Item)
Item #4615 Bottom Vertical Adapter Plate 30205 (Non Stocked Item)
Item #4620 Horizontal Adapter Plate (link): 30261
Item #4625 Blower Wheel w/ Clamp (link): 33126
Item #4630 Combustion Wheel w/ Clamp (link): 33128
Item #4705 Door Vent Assembly (link): 33050
Item #4738 Door Bezel (link): 32611
Item #4742 Black Door 33056 (Non Stocked Item)
Item #4743 White Door 33057 (Non Stocked Item)
Item #4755 Black Thermostat (link): 32300
Item #4756 Brown Thermostat (link): 38452 NLA
Item #4757 White Thermostat (link): 38453
Item #4848 Blower Housing 30751 (Non Stocked Item)
Item #4852 Blower Housing Cover (link): 32444
Item #4855 Wiring Harness (link): 33060
Item #4856 Board & Breaker Bracket 33052 (Non Stocked Item)
Item #4863 Exhaust Adapter 33171 (Non Stocked Item)
Item #4869 Heat Exchanger 33301 (Non Stocked Item)
Item #4873 Door Gasket 33321 (Non Stocked Item)
