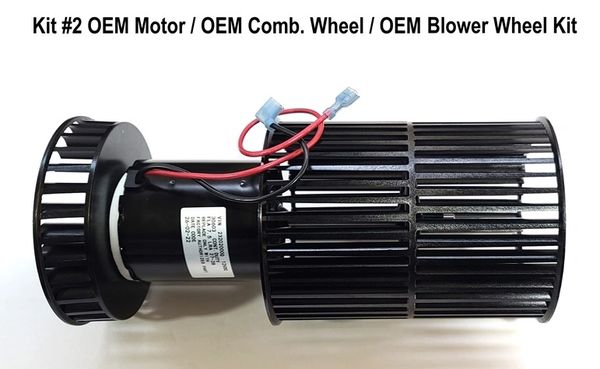

Dometic Furnace Model DFMD25141 Motor And Wheel Kits

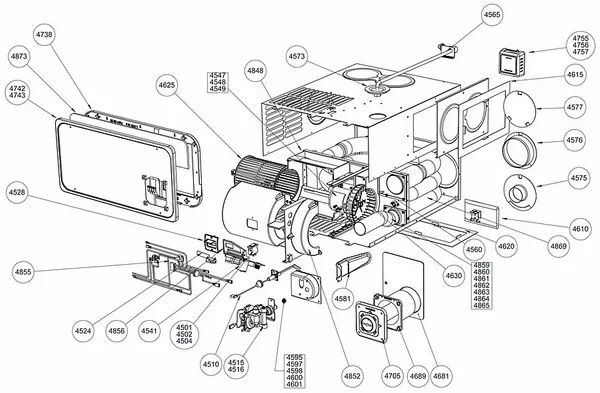

Dometic Furnace Model DFMD25141 Exploded Parts View Links

Click The Down Arrow To View The Complete Parts List

Item #4504 10 Amp Circuit Breaker 30335

Item #4510 Electrode 35100

Item #4516 Gas Valve 31098

Item #4524 OEM Sail Switch 31094 NLA (Replaced By P# 31094MC)(SN 72489156 & Before)

Item #4524 OEM Sail Switch 33082 (New P# 36165)(Serial Number After 72489156)

Item #4528 Sail Switch Mount Bracket 33053

Item #4541 OEM Ignition Board 31501

Item #4541 After-Market Ignition Board 31501MC

Item #4548 OEM Blower Motor 30722

Item #4548 After-Market Blower Motor 30722MC

Item #4560 Limit Switch 31091

Item #4573 Gas Line Grommet 35706

Item #4575 2 Inch Duct Adapter 36688

Item #4576 4 Inch Duct Adapter 31474

Item #4577 4 Inch Duct Cover Plate 31361

Item #4581 Burner Head 30268

Item #4601 Orifice (#1.45MM LP) 30845

Item #4610 Casing Leg 31244 (Non Stocked Item)

Item #4615 Vertical Adapter Plate 30205 (Non Stocked Item)

Item #4620 Horizontal Adapter Plate 30261

Item #4625 Blower Wheel w/ Clamp 33126

Item #4630 Combustion Wheel w/ Clamp 33128

Item #4705 Door Vent Assembly 33050

Item #4738 Door Bezel 32611

Item #4742 Black #44 Door 33056 (Non Stocked Item)

Item #4743 White #34 Door 33057 (Non Stocked Item)

Item #4755 Black Thermostat 32300

Item #4756 Brown Thermostat 38452 NLA

Item #4757 White Thermostat 38453

Item #4848 Blower Housing 30751 (Non Stocked Item)

Item #4852 Blower Housing Cover 32444

Item #4855 Wiring Harness 33060

Item #4856 Board & Breaker Bracket 33052 (Non Stocked Item)

Item #4863 Exhaust Adapter 33171 (Non Stocked Item)

Item #4869 Heat Exchanger 33301 (Non Stocked Item)

Item #4873 Door Gasket 33321
