Suburban Furnace Model NT-20T Blower Motor / Blower Wheel / Combustion Wheel Kits
Suburban Furnace Model NT-20T Blower Motor / Blower Wheel / Combustion Wheel Kit
IN-STOCK
Kit Contents:
Item# 75 OEM Blower Motor (link): 231206
Item# 79 OEM Combustion Wheel (link): 350110
Item# 61 OEM Air Wheel (link): 350113
_________________________________
Click The Down Arrow To View The Complete Parts List

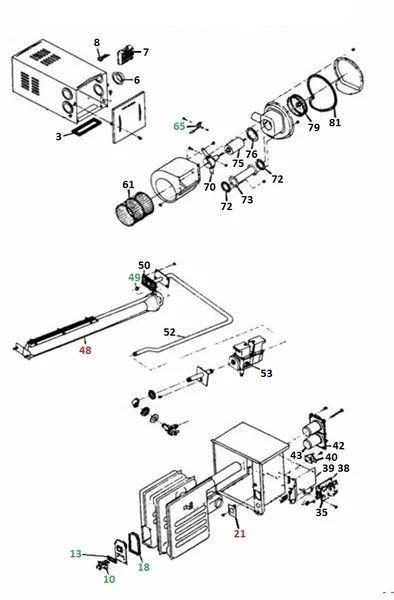

SUBURBAN FURNACE NT-20T EXPLODED PARTS VIEW LINKS
Item# 6 Duct Collar (link): 050715
*Not Shown* Duct Cover (link): 050733
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item# 7 Thermostat, White (link): 161154
Item# 7 Thermostat, Black (link): 161210
Item# 8 Power Supply Harness, Outside Plug (link): 520322
*Not Shown* Power Supply Harness, Inside Socket (link): 232699
Item# 10 Electrode, Dual Sense (link): 230956 (New P# 525019)
*Not Shown* Ignition Lead (link): 232456
Item# 13&18 Electrode / Burner Access Door Gasket Kit (link): 071076 (New P# 525011)
Item# 18 Burner Access Door Gasket Only (link): 070398
Item# 21 Limit Switch 230773 NLA
Item# 35 OEM Ignition Board (link): 521099
Item#35 After-Market Ignition Board (link): 521099MC
Item#35 Dinosaur Electronics Ignition Board (link): FAN50PP
Item# 38 Module Board Insulator (Not Used With New Ignition Boards)
Item# 39 Board Mounting Panel 090301 NLA
Item# 40 Time Delay Relay (link): 48000 (Replaces NLA P# 230625)
Item# 42 Vent Cap & Exhaust Tube Assembly (link): 260573
Item# 43 Intake Tube, 3 Inch (link): 050906
Item# 48 Burner Assembly 010619 NLA
Item# 49 Orifice (Stamp #3/64) (link): 180231
Item# 50 Manifold Gasket (link): 070408
Item# 52 Burner Manifold Pipe (link): 171468
Item# 53 Gas Valve (link): 161123
Item# 53 Gas Valve (link): 161123-OS
Item# 61 Room Air Blower Wheel (link): 350113
Item# 65 Sail Switch (link): 230510
Item# 70 Motor Mount Bracket (link): 062138 NLA
Item# 72 Crossover Tube Gasket (link): 070385
Item# 75 OEM Blower Motor, 12VDC (link): 231206
Item# 75 After-Market Blower Motor, 12VDC (link): 231206MC NLA
Item# 76 Motor Mount Gasket (link): 070384
Item# 79 Combustion Air Wheel (link): 350110
Item# 81 Combustion Air Box Gasket (link): 070386
