Suburban Furnace Model SF-25VHQ Tune-Up Kit

$40.32 $27.10

(Kit #1) has the new style electrode which is applicable above S/N 171416095, the second (Kit #2) has the old style electrode which is applicable to between S/N's 934701426 and ending at 171416095. Please verify which kit is applicable to your furnace prior to ordering. *See serial number note at the bottom of the page*

Tune-Up Kit #1 Contents (links in blue): (From Date 4/2017 To Present)
Item#22 Electrode With Lead (link): 525051 (S/N 171416095 To Present)
Item#59 Limit Switch (link): 232504 (New P# 525006)
Item#45 Sail Switch (link): 232261 (New P# 525003)
Item#12 Burner Access Door Gasket (link): 071263 (New P# 525031)
IN-STOCK

Tune-Up Kit #2 Contents (links in blue): (From Date 11/1993 To Date 4/2017)
Item#22 Electrode With Lead (link): 232286 (Above S/N 934701426 Ending S/N 171416095) (New P# 525009)
Item#59 Limit Switch (link): 232504 (New P# 525006)
Item#45 Sail Switch (link): 232261 (New P# 525003)
Item#12 Burner Access Door Gasket (link): 071263 (New P# 525031)
IN-STOCK

Click The Down Arrow To View Complete Parts List
_________________________________________

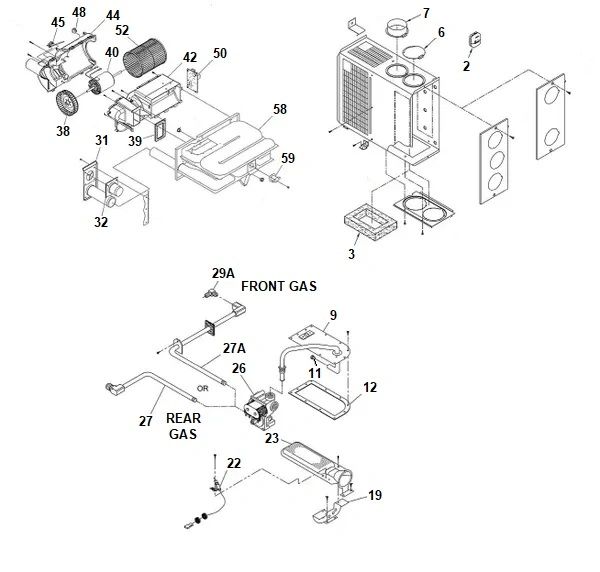

Suburban Furnace SF25VHQ Exploded Parts View Links
Item# 2 Thermostat, White (link): 161154
Item# 2 Thermostat, Black (link): 161210
Item# 3 Bottom Duct Gasket (link): 071195
Item# 6 Duct Cover (link): 050733
Item# 7 Duct Collar (link): 050715
Item# 9 Manifold Assembly (link): 171743
Item# 11 Orifice (link): 180306 (Metric Threads)
Item# 12 Burner Access Gasket (link): 071263 (New P# 525031)
Item# 22 Electrode (link): 525051 Above S/N 171416095
Item# 22 Electrode (link): 232286 Above S/N 934701426 And Ending 171416095 (New P# 525009)
Item# 23 Burner Assembly (link): 010762
Item# 26 Gas Valve (link): 161122
Item# 27 Gas Inlet Pipe (link): 171574
Item# 29A Gas Fitting (link): 170374
Item# 31 Vent Cap & Exhaust Tube Assembly (link): 260553
Item# 32 Intake Tube Assembly (link): 051446
Item# 39 Firewall Gasket 072087 (Coming Soon)
Item# 38 Combustion Wheel (link): 521235 (Old P# 350184)
Item# 40 Motor Assembly (link): 521231 (Old P# Link: 233042)
Item# 42 Front Half Room Air Blower Housing Assembly (link): 521259
Item# 44 Rear Half Room Air Blower Housing Assembly (link): 521253
Item# 45 Sail Switch (link): 232261 (New P# 525003)
Item# 48 On / Off Switch (link): 232351

Item# 50 Module Board (Ignition Board) (link): 521099

Item# 50 Module Board (Ignition Board) (link): 521099-OS

Item# 50 Module Board (Ignition Board) (link): 521099MC

Item# 50 Module Board (Ignition Board) (link): FAN50PP

Item# 52 Room Air Blower Wheel (link): 521233
Item# 59 Limit Switch (link): 232504 (New P# 525006)


*Please Note* All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers.

For Example: Even though numerically higher, 934701426 is actually lower than serial number 171416095 due to the year of manufacture.
