Atwood Furnace Model AFLD35111 Motor And Wheel Kit

$177.46 $128.40
Required
This item is out of stock

Atwood Furnace AFLD35111 Blower Motor / Combustion Wheel / Blower Wheel Kits

Kit #1 Includes (individual part links in blue):

Item#23 After-Market Motor Kit (link): 30720-NBK 20897
Item#42 OEM Combustion Wheel (link): 30619
Item#41 OEM Blower Wheel (link): 33126

Kit #2 Includes (individual part links in blue):

Item#23 OEM Motor Kit (link): 30720
Item#42 OEM Combustion Wheel (link): 30619
Item#41 OEM Blower Wheel (link): 33126
______________________________________

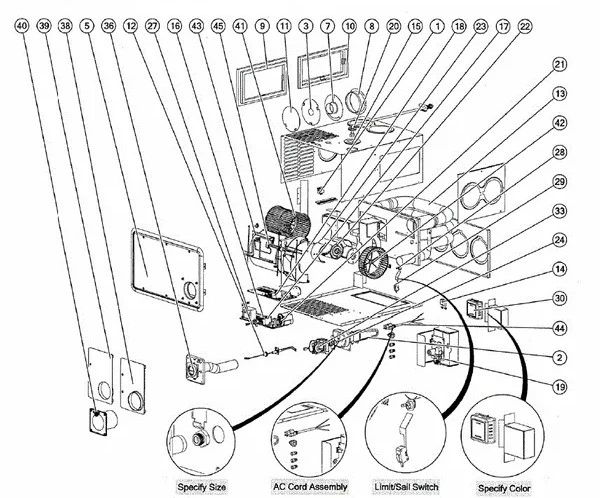

Atwood Furnace Model AFLD35111 Exploded Parts View Links
Click The Down Arrow To View The Complete Parts List

*Not Shown* Blower Motor And Wheel Kit (link): 30720/30619/33126

Item#1 Circuit Breaker / On-Off Switch (link): 34015

Item#1 Circuit Breaker / On-Off Switch Kit (link): 32345

Item#2 Burner Head (link): 30209

Item#2 Burner Assembly (link): 30209-OS

Item#3 Not Applicable

Item#4 Not Applicable

Item#5 Artic White Door Kit 30487

Item#5 Black Door Kit 30499

Item#5 Access Door Kit (Artic White) 31845

Item#5 Access Door Kit (Black) 31861

Item#7 Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#8 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

Item#9 Side Adapter Plate Discharge Kit 30205

Item#10 Bottom Adapter Plate Discharge Kit (link): 30261

Item#11 Duct Cover Plate, 4 Inch (link): 31361

Item#12 Electrode (link): 35100

Item#12 Electrode (link): 35100-OS

Item#12 Electrode (link): 35100MC

Item#13 Heat Exchanger Kit 35707

Item#14 Casing Leg Kit 31244

Item#15 Gas Line Grommet (link): 35706

Item#16 Not Applicable

Item#17 Not Applicable

Item#18 DSI Board Kit 30627

Item#19 OEM Ignition Board (link): 31501

Item#19 After-Market Ignition Board (link): 31501MC

Item#19 After-Market Ignition Board (link): 35-535811-113

Item#19 Dinosaur Ignition Board (link): FAN50PP

Item#20 Not Applicable

Item#21 Not Applicable

Item#22 Not Applicable

Item#23 Motor Kit (link): 30720

Item#23 Motor Kit (link): 30720-NBK 20897

Item#24 Orifice, Stamp #50 (link): 31078

Item#27 Not Applicable

Item#28 Limit Switch (link): 31091

Item#28 Limit Switch (link): 31091-OS

Item#28 Limit Switch (link): 31091MC

Item#29 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)

Item#29 Curved Blade Sail Switch (link): 31094-OS

Item#29 Curved Blade Sail Switch (link): 31094MC

Item#29 OEM Flat Blade Sail Switch Kit (link): 33082 (New P# 36165)

Item#29 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)

Item#29 Flat Blade Sail Switch Only (link): 33063

Item#30 Black Heat Only Thermostat (link): 32300

Item#30 Brown Heat Only Thermostat (link): 38452 NLA

Item#30 White Heat Only Thermostat (link): 38453

Item#33 Gas Valve Kit (link): 31098

Item#37 All Not Applicable

Item#38 Not Applicable

Item#40 Door Vent Assembly 31777

Item#41 Blower Wheel (link): 33126

Item#42 Combustion Wheel (link): 30619

Item#43 Wiring Harness Kit (link): 31114

___________________________
Available Downloads:

Atwood AFLD35111 Mobile Service Training Manual 2007

Atwood HydroFlame AFLD35111 Service Manual 2004

Atwood HydroFlame AFLD35111 Service Manual 2007

Atwood AFLD35111 Time Delay, Sail Switch, And Limit Switch Important Info
